Product Description

Overview:

• Cost-saving & Affordable
  Keeping costs low with 10,000^* maintenance free hours in normal mode and 17,000^* hours in ECO mode.
• Built to Please – Endless Possibilities

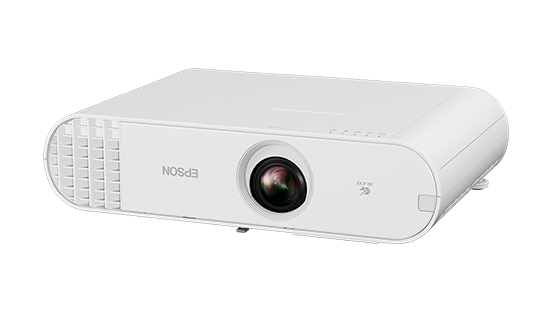

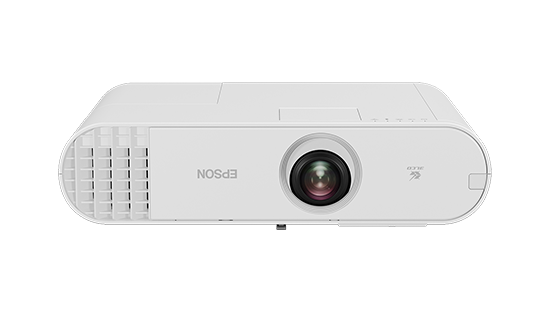

  Combining illumination with projection, the Epson EB-U50 projector turns any surfaces into customisable digital advertising spaces, enticing your customers into a new retail world. Giving you the freedom to create animated displays, providing a deeper story to your audience, and ultimately enticing them to make the purchase.
• Flexible installation options
  The EB-U50 projector offers a variety of flexible installation options. It can be mounted directly onto the ceiling, or conveniently on a tabletop. For ceiling projection, the projector enables you to project from any angle through 360° horizontal and 30° vertical.
• Advance networking security
  Utilising enterprise-level security connectivity via wireless networking, the Epson EB-U50 projector safeguards the simultaneous content sharing experience, making it the perfect choice for sharing confidential contents during meetings.

Specifications:

Brightness1:

• White Light Output (Normal/Eco):4,100 lm / 2,300 lm
• Colour Light Output:4,100 lm

Projection Lens:

• Type:Optical Zoom (Manual) / Focus (Manual)
• Focal Length:18.2 – 29.1 mmZoom Ratio:1.0 – 1.62
• F-number:1.51 – 1.77
• Throw Ratio Range:1.30 – 2.09
• Screen Size (Projected Distance):

Zoom :

• Wide:31” – 304” [0.88 – 8.88 m]
• Zoom : Tele:31” – 304” [1.43 – 14.29 m]

Operating Altitude:

• Operating Altitude:0 – 3,000 m <0 – 9,843 ft> ( over 1,500m / 4,921ft: with high altitude mode)

Dimension Excluding Feet:

• Dimension Excluding Feet (W x D x H):309 x 282 x 90 mm
• Weight Approx. 3.1kg

General Projectors:

Interfaces:

• • Network: Wireless LAN : Built-in
  • Digital Input:HDMI Type A : 2 (HDCP 1.4)
  • Audio Output:Stereo Mini : 1
  • USB Input:
    USB Type A : 1 (480Mbps for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply)
  • USB Type B : 1 (For Firmware Update, Copy OSD Settings)
  • Wi-Fi Generation Name:Wi-Fi 6
  • Supported Physical Standard Mode:IEEE 802.11a/b/g/n/ac/ax
  • Supported Interface:Infrastructure, Simple AP (Wi-Fi Direct)
  • Supported Security Type:Infrastructure: Open, WPA2 / WPA3-PSK, WPA2/WPA3-EAP
  • Supported EAP Type: PEAP, EAP-TLS
  • Simple AP (Wi-Fi Direct): WPA2-PSK (AES)

Main Parts Specification:

• LCD:Size : 0.62” (C2 Fine) Driving Method : Poly-silicon TFT active matrix Pixel Number : 2,073,600 dots (1920 x 1080) x 3 Native Resolution : Full HD Aspect Ratio 16:9 Pixel Arrangement : Cross stripe Contrast Ratio:16,000:1
• Lamp:Lamp Type : 230 W UHE
• Life (Normal / Eco) : 5,500 hours / 12,000 hours
• Light Source:Lamp

Keystone Correction:

• Vertical/Horizontal:±30° / ±30°
• Horizontal Slide Keystone Correction:Yes
• Auto Keystone Correction:Yes (Vertical only)

Start Up Period:

• Start Up Period:Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds

Direct Power On / Off:

• Direct Power On / Off:Yes
• Power Consumption (220-240V): Lamp (Normal / Extended): Normal : 332 W; Extended : 231 W

Colour Mode:

• Colour Mode:Blackboard, Cinema, Dynamic, Presentation, sRGB

Projection Technology:

• Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness:

• White Light Output (Normal / Extended):3,700 lm*1Colour Light
  Output:3,700 lm*1Contrast Ratio:16,000:1

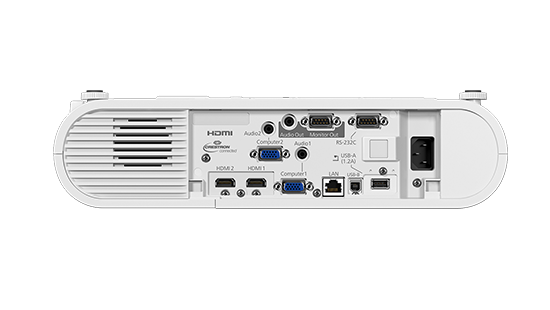

Connectivity:

• Analog Input:D-Sub 15Pin: 2
• Digital Input:HDMI: 2
• Output Terminal:D-Sub 15Pin: 1
• Audio Input:Stereo Mini Jack: 2
• Audio Output:Stereo Mini Jack: 1

Projection Lens:

• Type:Optical Zoom (Manual) / Focus (Manual)
• Focal Length:20.42 – 24.50 mm
• Zoom Ratio:1 – 1.2
• F-number:1.50 – 1.71
• Throw Ratio Range:1.38 – 1.68 (Wide to Tele)

Wireless Specifications (Wireless LAN: Built-in):

• Supported Speed for Each Mode :IEEE 802.11b (2.4GHz): 11 Mbps*2
• IEEE 802.11g (2.4GHz): 54 Mbps*2
• IEEE 802.11n (2.4GHz): 130.0 Mbps*2
• Wireless LAN Security:Quick Mode: OPEN, WPA2-PSK
• Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP
• Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP

Screen Size (Projected Distance):

• Standard Size:Tele: 30″ to 300″ [0.87 to 9.02 m]
• Wide: 30″ to 300″ [1.07 to 10.98 m]

Geometric Correction:

• Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)
• Quick Corner:Yes

Operating Temperature:

• Operating Temperature:5 – 40 °C <41 – 104 °F
• [When environment temperature becomes high, the brightness becomes dark automatically]

Operating Altitude:

• Operating Altitude:0 – 3,048 m <0 – 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Cool Down Period:

• Cool Down Period:Instant Off

Direct Power On/Off:

• Direct Power On/Off:Yes

Weight:

• Weight:Approx. 3.1 kg (Including Standard Lens)

Air Filter:

• Type:High Efficiency Filter
• Maintenance Cycle:10,000 / 20,000 hours*3

Fan Noise:

• Normal / Quiet:37dB / 28dB

Power:

• Power Supply Voltage:100 – 240 V AC ±10%, 50/60 Hz

Others:

• USB Type A:1 (for USB Memory, USB Document Camera, Wirelss LAN unit, Firmware Update)
• USB Type B:1 (for USB Display, Control, Firmware Update)

Control I/O:

• RS-232C:D-Sub 9pin x 1

Network:

• Wireless LAN:RJ45 x 1
• Wireless:Built-In

Start Up Period:

• Start Up Period:Up to 6 seconds, Warm-up Period: 30 seconds

Power Consumption (220-240V):

• Lamp (Normal / Extended):285W / 218W
• Standby:2.0W / 0.3 W

Dimension Excluding Feet:

• Dimension Excluding Feet (D x W x H):248 x 364 x 87 mm

Projectors Facets:

• Features, Projectors Facets:Wifi
• Quick Corner
• Short Throw
• Edge Blending
• Laser / Lamp, Projectors Facets:Lamp
• Resolution, Projectors Facets:WUXGA
• Contrast Ratio, Projectors Facets:16,000:1
• Inputs & Interfaces, Projectors Facets:HDMI
• RJ-45 & RS-232
• USB Plug and Play
• Brightness Range Lumens, Projectors Facets:2000

Specifications of Main Parts:

• LCD:Size: 0.67”
• Native Resolution: WUXGA (1920 x 1200)
• Light Source:Type: 200W UHE
• Life (Normal / Eco): 10,000 / 17,000 hours
• Aspect Ratio:16:10
