Product Description

Specifications:

• Projection System High-Aperture Epson 3LCD, 3-chip technology

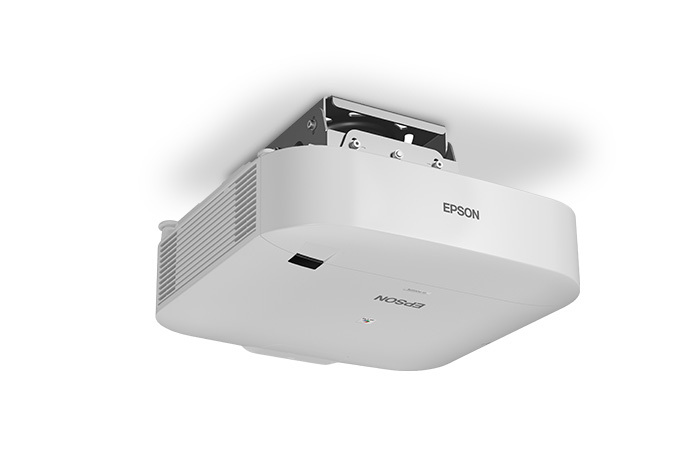

• Projection Method Front/rear/ceiling mount
• Driving Method Poly-Silicon TFT Active Matrix
• Pixel Number 2,304,000 dots (1920 x 1200) x 3
• Signal Input Maximum Display Resolution: 4096 x 2160 (resizing display) Display Resolution: 1920 x 1200 pixels
• Native Resolution WUXGA with 4K Enhancement1 (1920 x 1200 x2)
• Resolution on Screen WUXGA with 4K1 Enhancement/4.6 million pixels
• Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9* * With vertical image shift control within letterbox area.
• Pixel Arrangement Cross stripe
• Color Brightness3 Color Light Output: 7,000 lumens
• White Brightness3 White Light Output: 7,000 lumens
• Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
• Brightness Uniformity (Typical) 85%
• Color Reproduction Up to 1.07 billion colors
• Keystone Correction:
  • Vertical: ±45 degrees;
  • Horizontal: ±30 degrees
  • Illumination Technology Laser Phosphor

Projection Lens (Standard):

• See website for information on optional lenses.
• Standard Lens ELPLM08 (sold separately)
• Type Powered shift/focus/zoom
• F-Number 1.7 – 2.3
• Focal Length 24.0 mm – 38.2 mm
• Zoom Ratio Optical zoom 1.0 – 1.6x
• Throw Ratio Range 1.45 – 2.32
• Lens Shift Vertical: ±67%; horizontal: ±30%

Other:

• Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
• Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
• Power Consumption:
  • 448 W (Normal, Custom)
  • 379 W (Medium, Quiet, Extended)
  • 2.0 W Standby (Communication on)
  • 0.5 W Standby (Communication off)
• Fan Noise 33 dB (Normal Mode), 31 dB (Medium Mode), 29 dB (Eco Mode)
• Security Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock

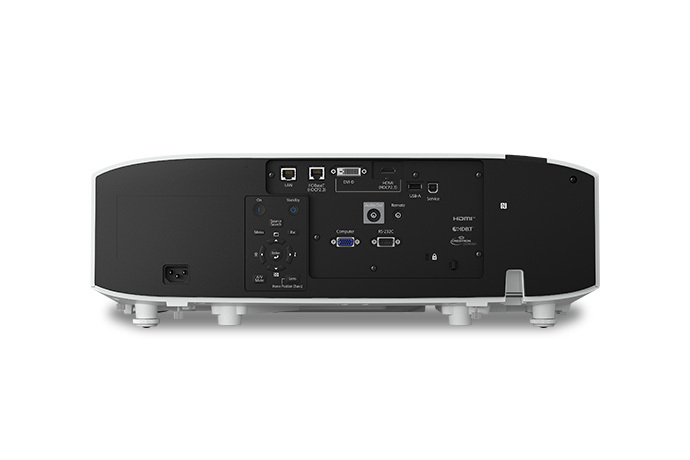

Video I/O

• Input Signal Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160 – Max PC graphics: 2560 x 1600
• Auto Power On Signal Detection on HDMI/Plug-In Detection (HDMI, VGA 15pin)
• Sleep Mode Yes (with timer)
• HDMI CEC Control Yes
• Dimensions (W x D x H) Excluding Feet, Lens 21.5″ x 17.2″ x 6.5″
• Weight 35.9 lb

Remote Control

• Features Power, source search selection, lens shift, zoom,
  focus, test pattern selection, A/V mute, freeze, user ID, auto,
  aspect, color mode, number, page up and down, E-zoom,
  volume, help, menu, enter, esc and pointer functions
• Operating Angle:
  • Angle Front: Right/Left: 60 to +60 Upper/Lower +30
    to 20 degrees
  • Angle Rear: Right/Left 30 to +30 Upper/Lower +50
    to +10 degrees
• Operating Distance 98 ft
