Product Description

• Remarkable Image Quality

With an optimum brightness of 5,000 lumens and dynamic contrast of over 5,000,000:1, be assured that your images will be vivid and attention-grabbing even under a variety of ambient lightings. The ultra-short-throw laser projector is able to project beautiful and sharp images even in the tightest retail spaces up to a maximum of 130-inch.

• Multi-directional Projection

Thanks to its laser light source, EB-800 series projectors can rotate 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness and quality. An ideal companion to businesses that require vivid projections on a variety of surfaces such as floors and ceilings.

• Flexible Projection Image

The black background in images will not be projected on surface, allowing non-rectangular images. This allows flexibility and great creativity in creating content. Thus, this gives users the ability to form sleek and eye-catching designs, without being confined to a rectangular image.

• Do-It-Yourself ContentCreate video and image content with Epson Creative Projection App*. With over 40 high quality templates to choose from, customise stunning and creative content effortlessly and project them wirelessly to capture your audience’s attention. What’s more, the app is totally free and easily downloadable from Apple App Store!

Specifications:

Projectors Facets:

• Features, Projectors Facets:
  • Quick Corner
  • Ultra Short Throw
  • Edge Blending
• Laser / Lamp, Projectors Facets: Laser
• Short Throw / Ultra Short Throw, Projectors Facets: Ultra Short Throw
• Resolution, Projectors Facets: 1080p
• Contrast Ratio, Projectors Facets: Over 5,000,000:1
• Inputs & Interfaces, Projectors Facets:
  • HDMI
  • Epson Creative Projection App
  • RJ-45 & RS-232
  • USB Plug and Play
• Brightness Range Lumens, Projectors Facets: 4001

Projection Technology:

• Projection Technology: RGB liquid crystal shutter projection system

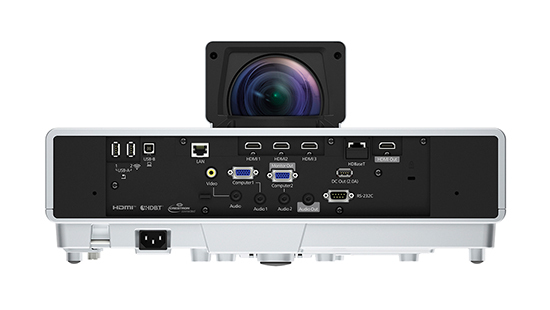

Connectivity:

• Network:
  • Wireless LAN: 1 x USB Type A (In common with Memory I/O)
  • Wired LAN: RJ45 x 1
• Analog Input:
  • Composite: RCA x 1 (Yellow)
  • D-Sub 15Pin: 2
• Digital Input:
  • HDMI: 3 (HDCP2.3)
  • HDBaseT: 1 (HDCP2.3)
• Audio Input: Stereo Mini Jack: 3
• Audio Output: Stereo Mini Jack: 1
• Control I/O: RS-232C: D-sub 9 pin x 1
• Others:
  • USB Type B: 1 (for USB Display, mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
  • USB Type A: 2 (for Saving and Reading* data via USB Memory, USB Document Camera)

Screen Size (Projected Distance):

• Zoom : Wide:
  • 65” – 130” [39.2 – 80.3 cm] @ 16:9
  • 61” – 120” [39.5 – 79.6 cm] @ 16:6
• Zoom : Tele: 48” – 96” [39.2 – 80.3 cm] @ 16:9
• Standard Size: 80” [48.7 cm]

Dimension Excluding Feet (W x H x D):

• Dimension Excluding Feet (W x H x D): 458 x 209.5 x 375 mm

Weight:

• Weight:
  • Approx. 9.4 kg (Without Cable Cover)
  • Approx. 9.7 kg (With Cable Cover)

Air Filter:

• • Maintenance Cycle: 20,000 hours*3
