Product Description

Mobility Generates Value

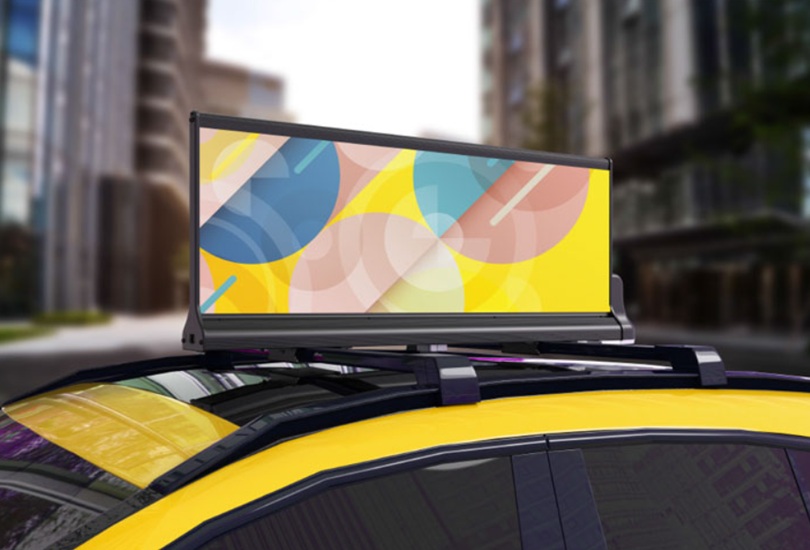

• Yaham taxi roof LED display is a new mobile media platform that could display advertising and news coverage. Different from traditional media, Yaham car roof top display is able to switch advertisings intelligently according to location and traffic information through the built-in GPS module.

Energy efficient

• Yaham taxi top advertising signs consumes 100W on average, brightness is adjustable intelligently by the built-in brightness sensor. Precise power input technology allows red and blue diodes powered separately by different voltage. As a result, Yaham taxi top led screen is 50% less than traditional LED display power consumption.

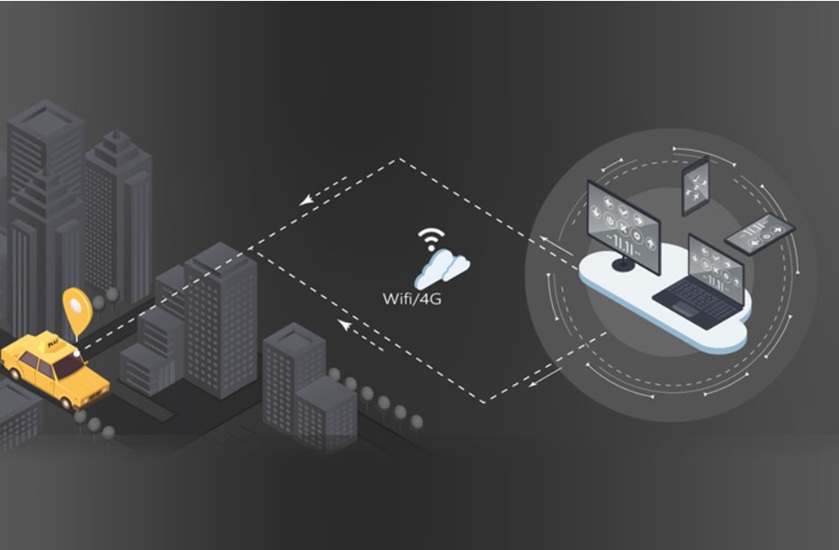

Wireless and remote control, smart play list

• All displays are able to be controlled by one terminal on mobile phone, computer and iPad. The commercial display is subject to traffic and location, when a car enters a specific area with the Yaham car roof led display, the pointed commercial could automatically display the information.

High Ingress Protection

• Ingress protection rating up to IP65, together with the trans-parent PC cover to protect diodes, Yaham taxi top advertising screen is totally weatherproof and shockproof. The power module embedded under the aluminum alloy, heat generat-ed inside can be conducted through it. Yaham taxi LED display also featuring electrostatic prevention and lighting protection to make it more durable for the long-term usage.

Slim and light

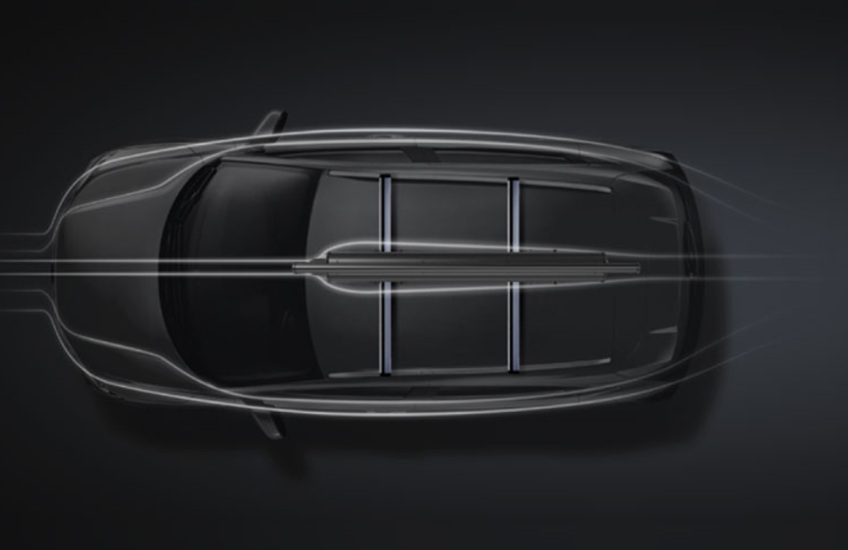

• Slim and light architecture, Yaham taxi top advertising LED display cabinet weighs only 13kg.The thinnest part of the cabinet measures only 3.3cm, aerodynamic design results in low wind load.

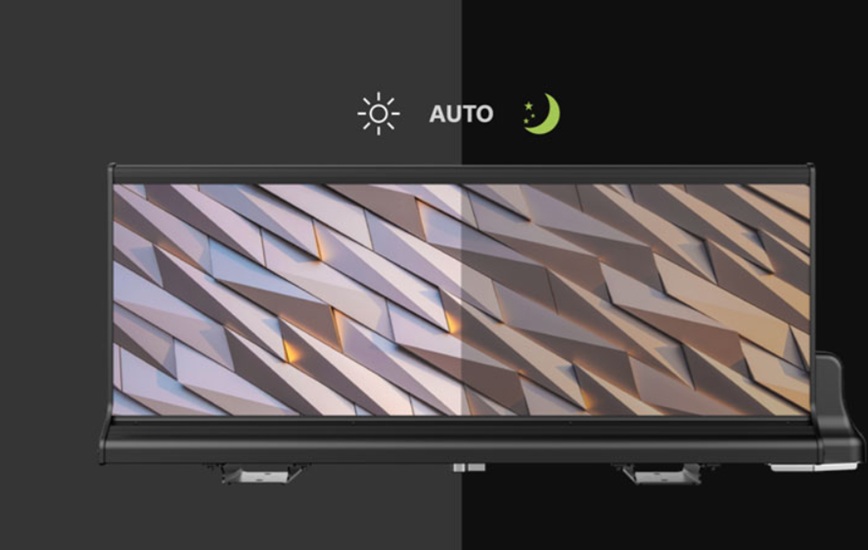

Auto brightness,save power consumption

• consumes 70W on average. Brightness is adjust intelligently by the built-in brightness sensor.During daytime, brightness is automatically increase up to maximum brightness. During nighttime, brightness is automatically decrease to save energy.

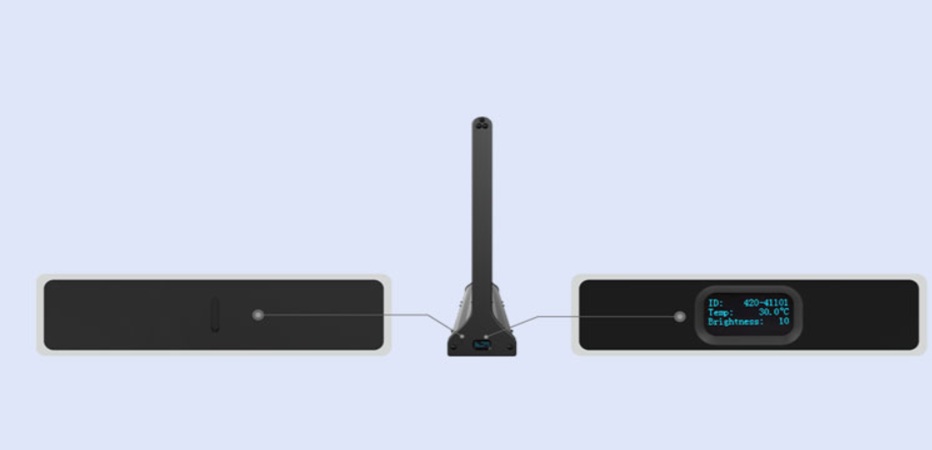

• OLED Information display
  • GPS： Speed、Longitude、Latitude、Altitude、GPS Number
  • Display: Brightness、Temperature、Total time、Uptime
  • Controller: Card、ID、IP、Pixels

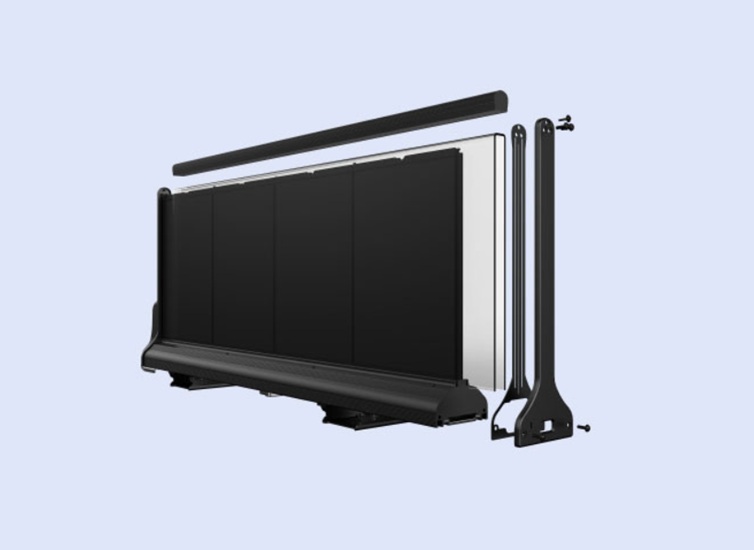

Front access, effortless maintenance

• Cabinet is accessible and serviceable from the side while module can be accessed from front, making the maintenance to be finished instantly and effortlessly.

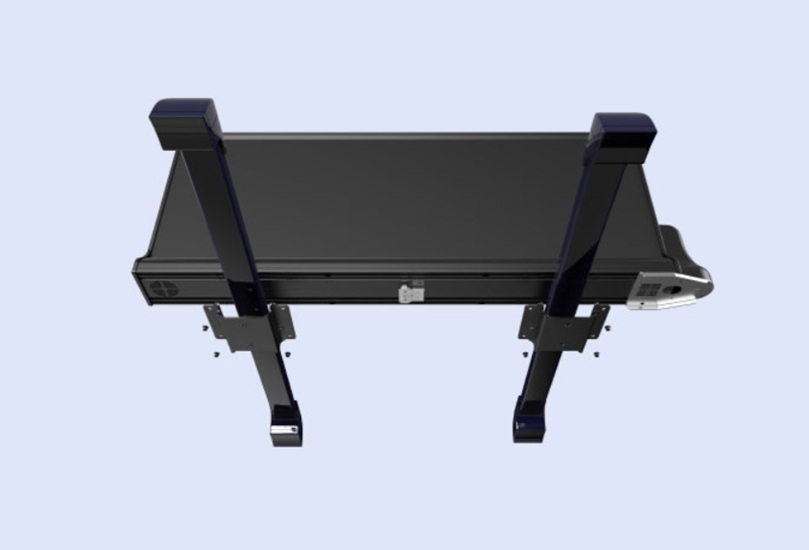

Track design, slidable angle

• YAHAM car top LED advertising screen is fixed on the car by a track on it and the position of the display is slidable to make the display more flexible and content more readable.

Specifications:

• Item TAXI-P2.5/TAXI-P2.96
• Pixel Pitch 2.5/2.96
• LED type SMD
• Pixel density (pixel/m²) 160,000/114134
• Cabinet weight 13kg
• Viewing angle V140° H140°
• LED lifespan 100000Hrs
• Operation temperature -40~75℃
• Control system Andriod+4G+AP+WiFi+GPS+8GB Flash
