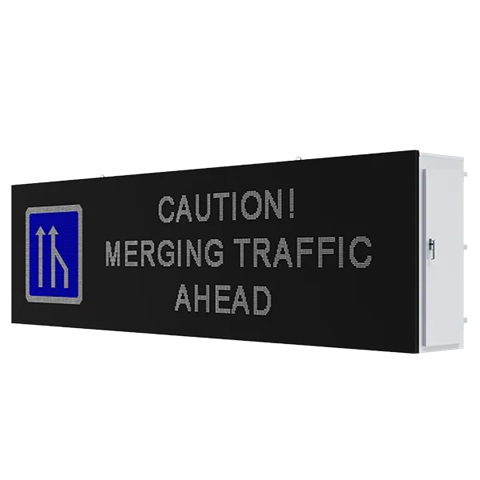

Walk-in Variable Message Sign EN12966 VMS
Feature
- Convenient access for maintenance personnel
- Open workspace and organized components facilitate maintenance operation
- Tough aluminum mask for superior contrast and minimal glare
- Positive-pressure, forced-air ventilation system for VMS longevity
Product Description
Specifications:
| Model | VMS20L-RGB | VMS25L-RGB |
| Pixel Pitch (mm) | 20 | 25 |
| Module Resolution (pixels) | 8×16 | 8×16 |
| Size of Module (mm) (HxW) | 160×320 | 200×400 |
| Conformity | Compliant with EN12966 Standards L3 / L3*, R3, C2, B1, B2, B3, B4, B5, B6, B7 | |
| Luminance | Red > 3100 cd/m² Green > 3720 cd/m² | Yellow> 7440 cd/m² White > 12400 cd/m² |
| Luminance Ratio | R3 (White:16.7) (Yellow:10) (Orange:6.5) (Green:5) (Red:4.2) (Blue:1.7) | |
| Color | C2 | |
| Beam Width | B1, B2, B3, B4, B5, B6, B7 (30 degree horizontal&vertical) | |
| Brightness Control | 100Levels | |
| Enclosure Material | Aluminum + Optical lens | |
| Enclosure Surface | Powder Coated, Matte Black (Other Colors Available) | |
| Working Temperature (°C) | T1 (-15°C to +60°C); T2 (-25°C to +55°C); T3 (-40°C to +40°C) | |
| Humidity Range | 0~99% | |
| Pollution | D3 | |
| Mechanical Protection | IP54 | |
| Maintenance | Walk-in Maintenance | |
| Power Supply | AC: 90-260V (50/60Hz) | |
| Solar Power System | USB / Battery | |
| Communication | RS232 / RS485 / Ethernet Via RJ45 / GPRS / 3G / 4G / Optic Fiber | |
| Protocol | NTCIP 1203 / MODBUS / UTMC / XML / JETFILE II / Profibus / RSMP | |
| EMC/FCC Certification | Compliant with EN50293; FCC Part 15B:2017; ICES-003:2016 | |
| Certification | EN12966, ETL, CETL |
