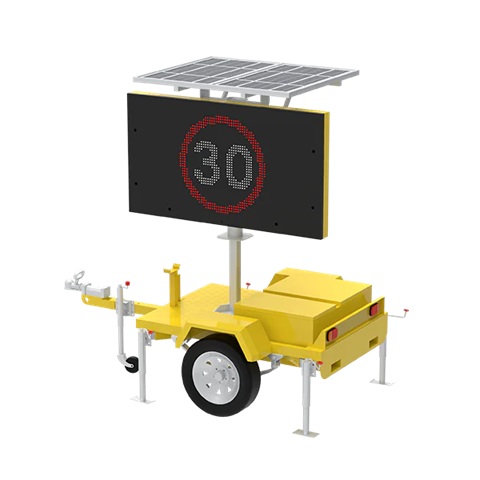

Trailer Variable Message Sign
- Model TVMS-20M-SMD / TVMS-25M-SMD / TVMS-31.25M-SMD
- Pixel Pitch (mm) 20 / 25 / 31.25
- Pixel Configuration SMD
- Module Resolution (pixels) (HxW) 8×16
Product Description

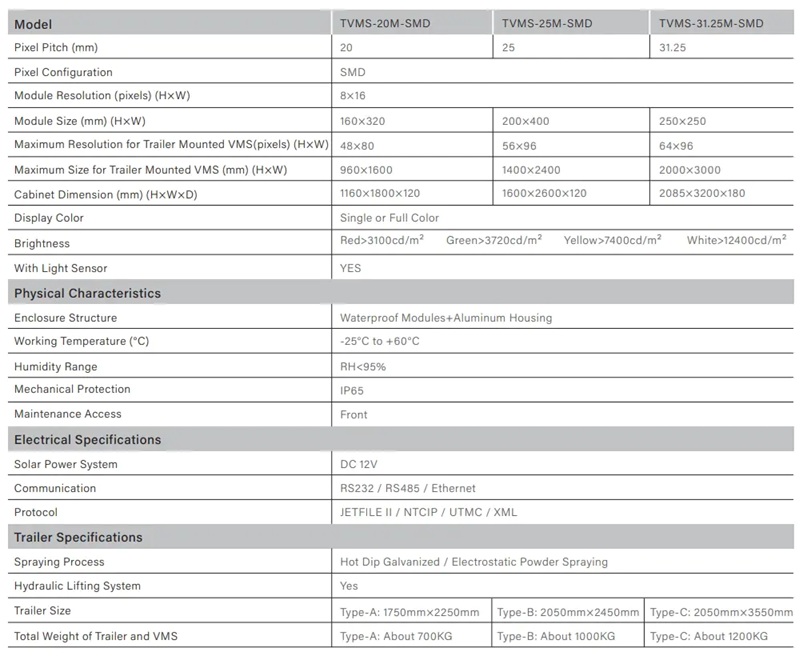

Specifications:
- Model TVMS-20M-SMD / TVMS-25M-SMD / TVMS-31.25M-SMD
- Pixel Pitch (mm) 20 / 25 / 31.25
- Pixel Configuration SMD
- Module Resolution (pixels) (HxW) 8×16
- Module Size (mm) (HxW) 160×320 / 200×400 / 250×250
- Maximum Resolution for Trailer Mounted VMS(pixels) (HxW) 48×80 / 56×96 / 64×96
- Maximum Size for Trailer Mounted VMS (mm) (HxW) 960×1600 / 1400×2400 / 2000×3000
- Cabinet Dimension (mm) (HxWxD) 1160×1800×120/ 1600×2600×120 / 2085×3200×180
- Display Color Single or Full Color
- Brightness Red>3100cd/m² Green>3720cd/m² Yellow>7400cd/m² White>12400cd/m²
- With Light Sensor YES
Physical Characteristics:
- Enclosure Structure Waterproof Modules+Aluminum Housing
- Working Temperature (°C) -25°C to +60°C
- Humidity RangeRH <95%
- Mechanical Protection IP65
- Maintenance Access Front
Electrical Specifications:
- Solar Power System DC 12V
- Communication RS232/RS485 / Ethernet
- ProtocolJETFILE II/NTCIP/UTMC/XML
Trailer Specifications :
- Spraying Process Hot Dip Galvanized / Electrostatic Powder Spraying
- Hydraulic Lifting System Yes
- Trailer Size Type-A: 1750mm×2250mm Type-B: 2050mm×2450mm Type-C: 2050mm×3550mm
- Total Weight of Trailer and VMS Type-A: About 700KG Type-B: About 1000KG Type-C: About 1200KG
