Product Description

Product Description

• Product Name: PDLC Smart Glass
• Thickness: 5+5mm, 6+6mm, 8+8mm, 10+10mm, customized
• Min Szie: 300*300mm
• Max width: 2000*4000 mm
• Light transmittance: ≥83%
• UV resistance: ≥98%
• Power consumption: 5W-7W
• Switching time: ≥2000000 times
• Life time: ≥80000 H
• Glass types: Clear float , Extra clear float , Tinted float , Low- e , Proof fire

Forming principle

It is the low molecular liquid crystal and the prepolymer mixed, under certain conditions by polymerization reaction, the formation of micron-level liquid crystal droplets evenly dispersed in the polymer network, and then use the liquid crystal molecules dielectric anisotropy to obtain a light Response material.

Product: Intelligent liquid crystal dimming film

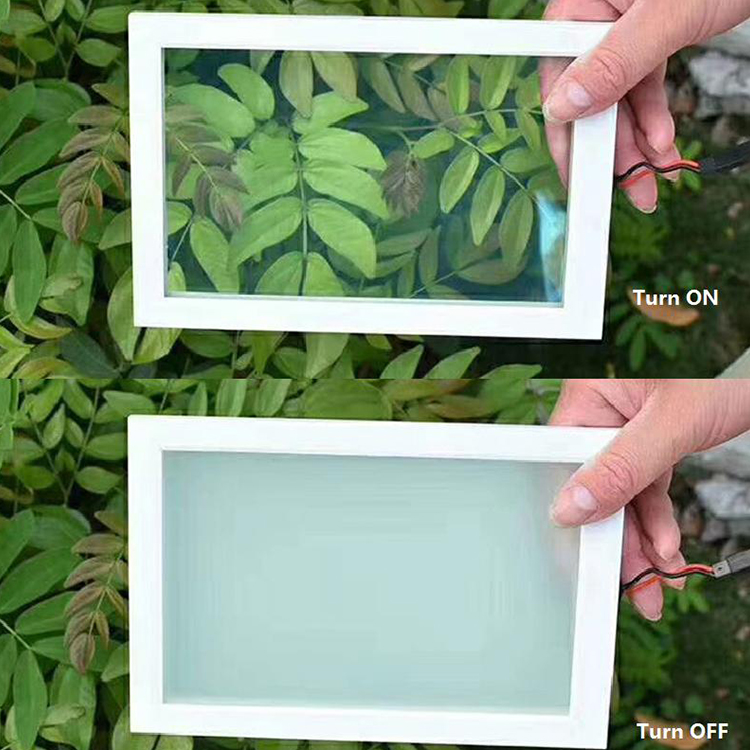

It is a liquid crystal display function filmIt is in the PDLC dimming film coated with AB glue, affixed to the glass surface;Can achieve dimming film glass penetration and privacy protection . It uses a polymer dispersion liquid crystal (PDLC) as a display structureIt is a two-layer flexible transparent conductive film as an electrodeAble to adjust the voltage under the moment to achieve a transparent and opaque switch
