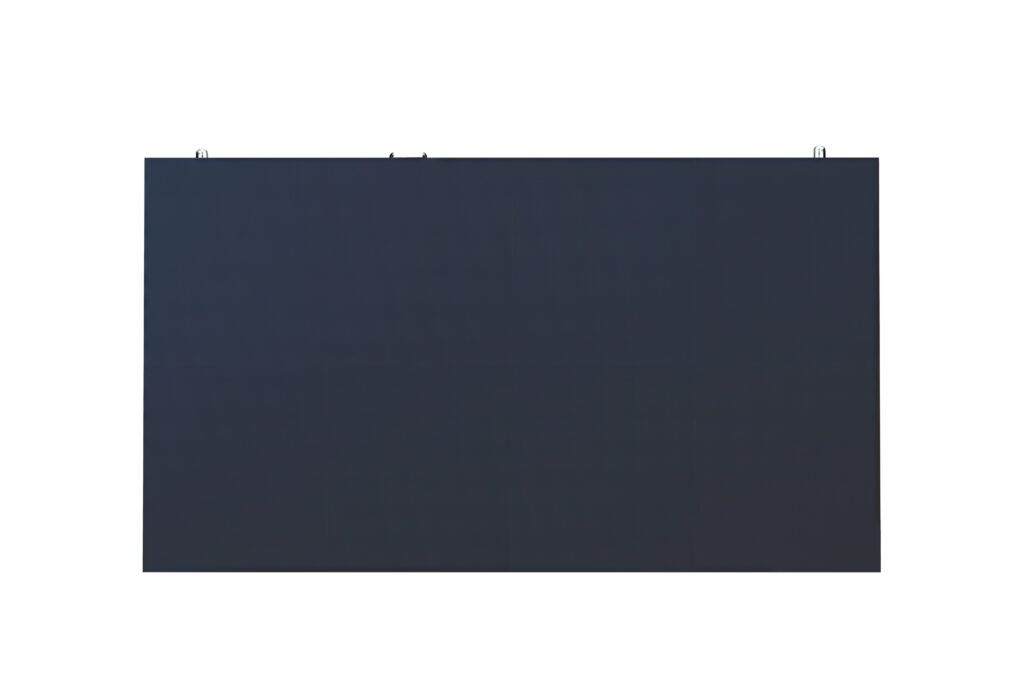

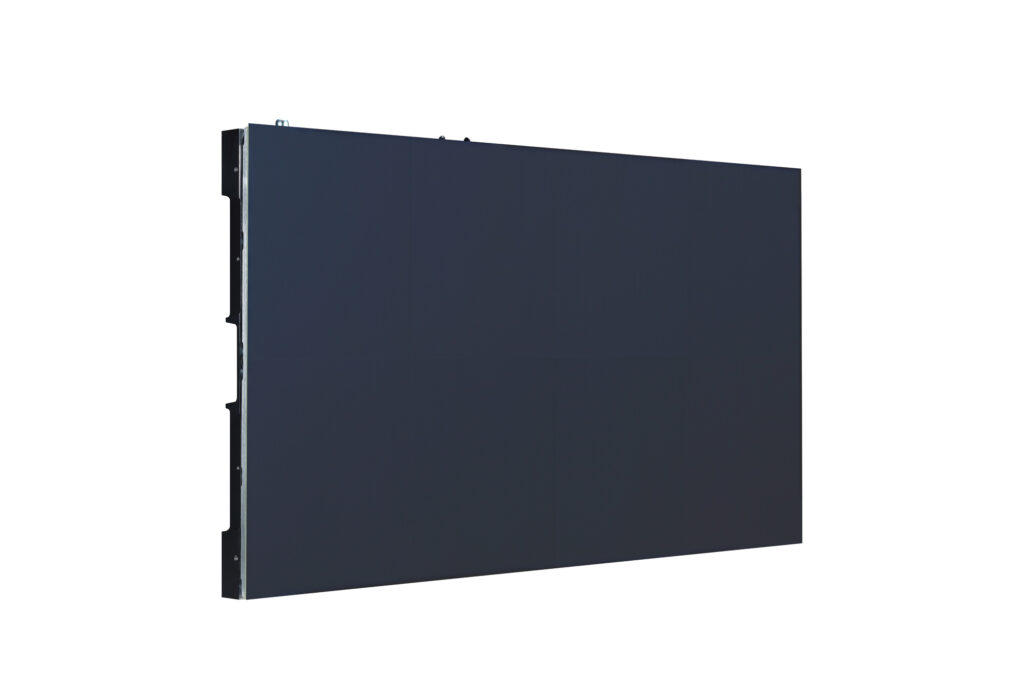

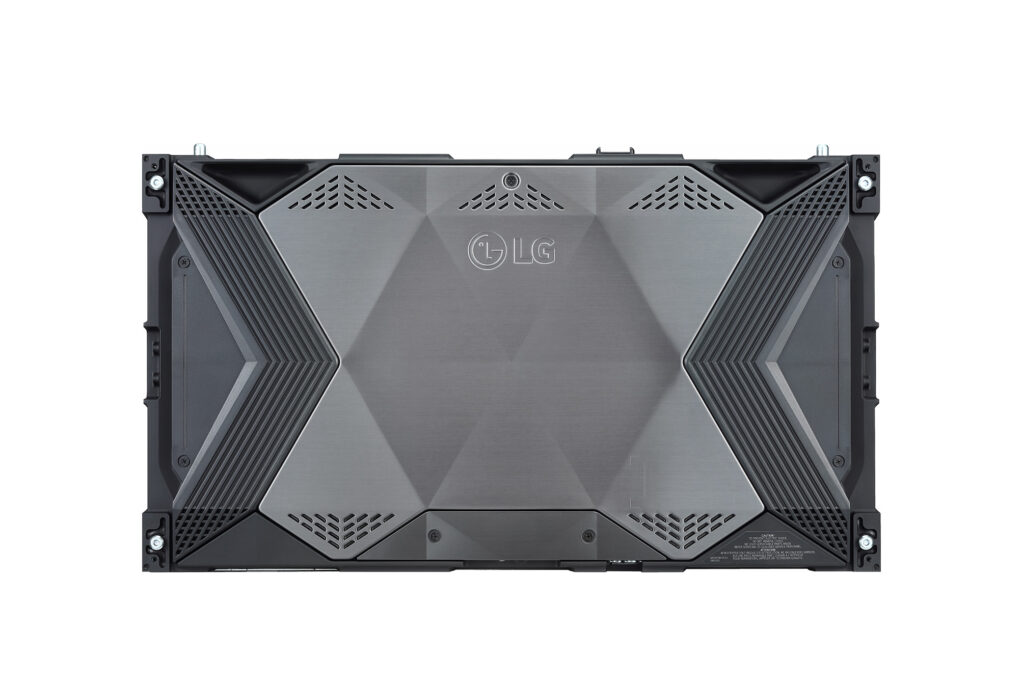

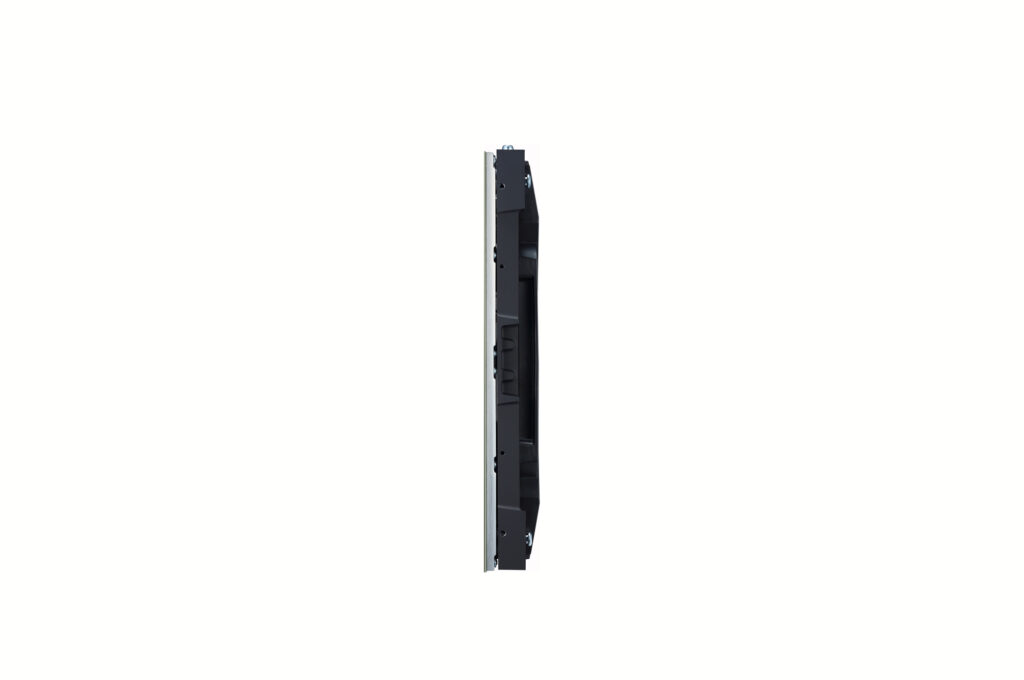

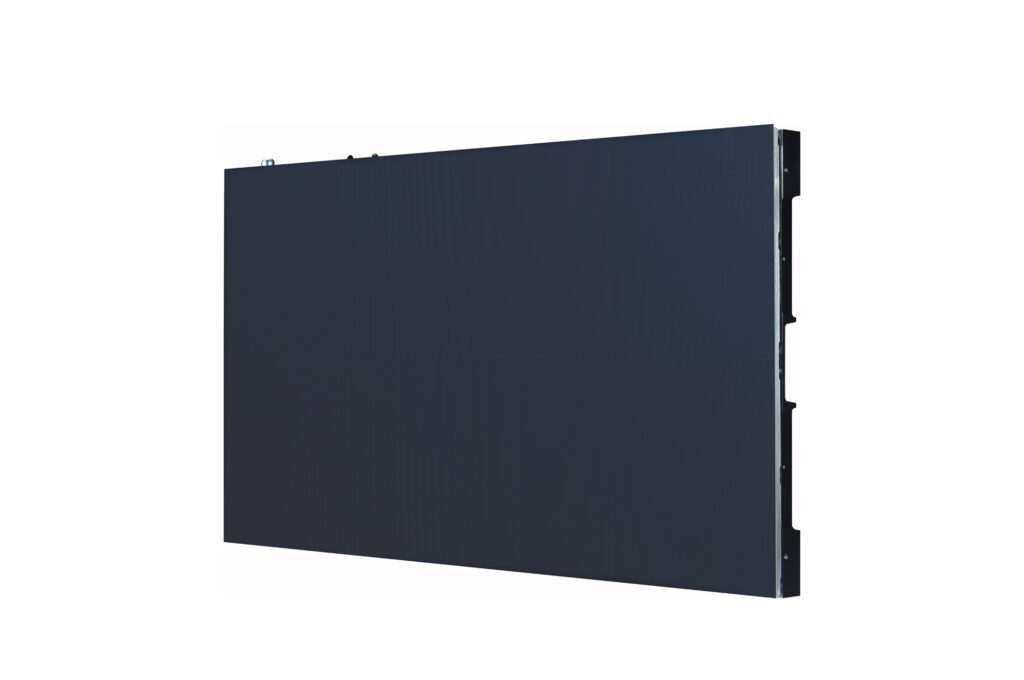

LG LSAP007 Commercial Micro LED
Key Feature
- Pixel Pitch : 0.78 mm
- Brightness : 600 (min.)
- Power UI/UX with Megapixel HELIOS LED Processing Platform
- Black Immersion
- Accurate Colors
- IP Rating : IP50 / IP20 (Front / Rear)
Product Description
Tech Specifications:
Physical Parameter
- Pixel Pitch (mm) 0.78
- Pixel Configuration Micro
- Module Resolution (W x H) 384 x 144
- Module Dimensions (W x H, mm) 300 x 112.5
- Weight per Module (kg) 0.18
- Cabinet Resolution (W × H) 768 x 432
- Cabinet Dimensions (W × H × D, mm) 600 × 337.5 × 44.9
- No. of Modules per Cabinet (W × H) 2 × 3
- Cabinet Surface Area (m²) 0.2
- Weight per Cabinet (kg/cabinet) 7.8
- Weight per Square Meter (kg/m²) 38.5
- Physical Pixel Density (pixels/m²) 1,638,400
- Flatness of Cabinet ±0.5 mm
- Cabinet Material Die Casting Aluminum
- Service Access Front
Optical Specifications
- Max. Brightness (After Calibration) * 600
- Color Temperature (K) 2,000-10,000 / Default 6,504
- Visual Viewing Angle (Horizontal/Vertical) 150 × 150
- Brightness Uniformity 95%
- Color Uniformity ±0.02 Cx, Cy
- Contrast Ratio (10 lux) 17,000:1 @10lux
- Processing Depth (bit) 22 (Internal Processing (HDR10))
Electrical Specifications
- Power Consumption (W/Cabinet, Max.) 70
- Power Consumption (W/Cabinet, Avg.) 40
- Power Consumption (W/m², Max.) 346
- Heat Dissipation (BTU/h/Cabinet, Max.) 239
- Heat Dissipation (BTU/h/Cabinet, Avg.) 136
- Heat Dissipation (BTU/h/㎡, Max.) 1,179
- Power Supply (V) 100 to 240
- Frame Rate (Hz) 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
- Refresh Rate (Hz) 3,840
Operation Conditions
- Lifetime (Hours to Half Brightness) 100,000
- Operating Temperature (°C) 0 to +40
- Operating Humidity 10-80% RH
- IP rating Front / Rear IP50 / IP20
Certification
- Certification IEC 62368-1, EMC Class A
- Fire Protection BS476 Part7 Class1
Environment
- Environment RoHS/REACH
Controller
- Controller MEGAPIXEL(HELIOS)
- 90 Degree Corner Cut
- 90 Degree Corner Cut No
