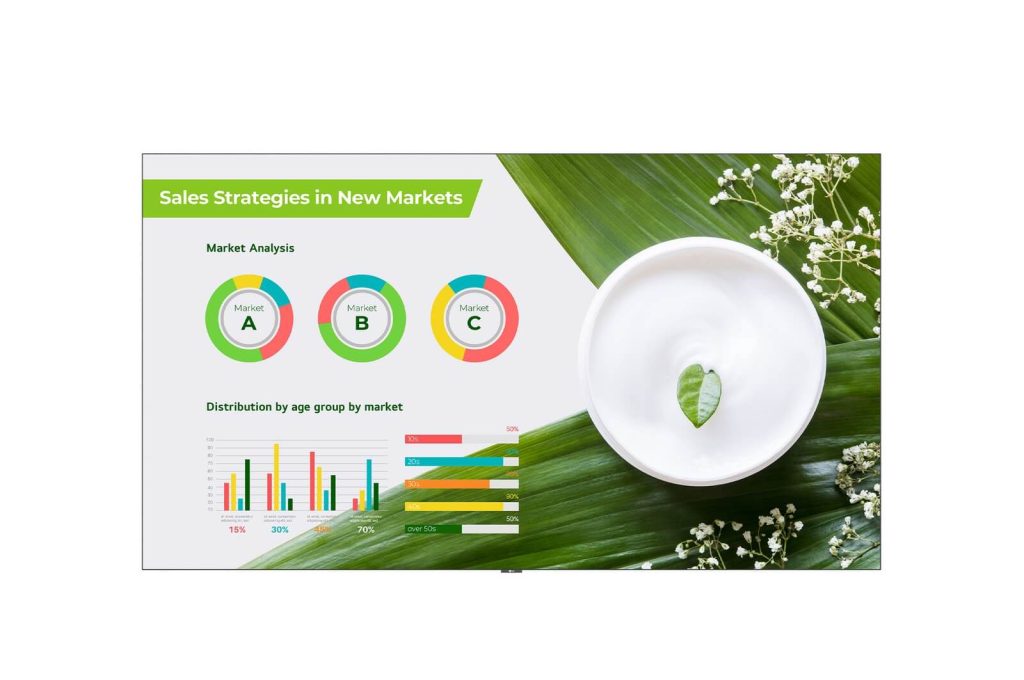

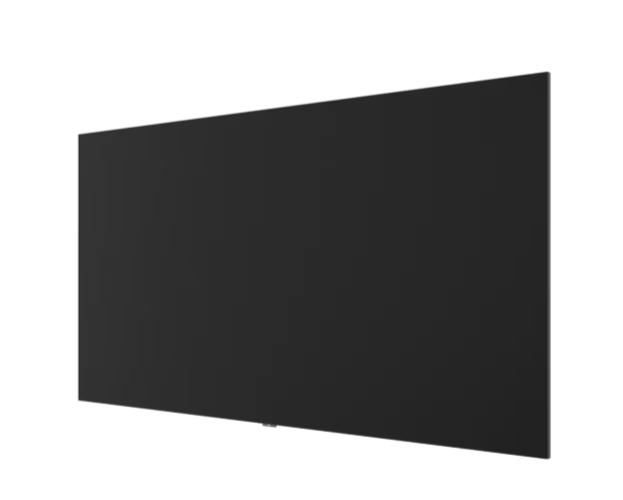

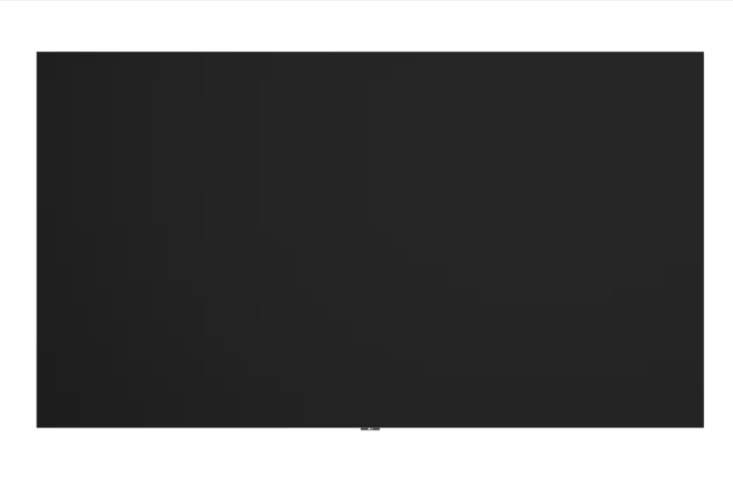

LG LAPA136-GF 136″ LED All-in-One Led Signage
- Screen Size : 136″
- Pixel Pitch : 1.56 mm
- Brightness : 500 nit (Max., after calibration)
- Screen Resolution : 1,920 × 1,080
Product Description
PHYSICAL PARAMETERS
- Cabinet material: Aluminum
- Flatness of Cabinet (mm): ±0.15
- Module Dimensions(WxH,mm): 300*168.75
- Module Resolution (WxH): 192*108
- No. of Modules per Screen (WxH): 10×10 (Total 100)
- Physical Pixel Density (pixels/㎡): 409,600
- Pixel Configuration: Single SMD
- Pixel Pitch (mm): 1.56
- Screen Dimensions (W x H x D, mm, including bezel): 3,005 X 1,692.5 X 29.95 (Thickest 59.5)
- Screen Resolution (WxH): 1,920×1,080
- Screen Surface Area (㎡): 5.06
- Service access: Front
- Weight of the screen: 108.5
OPTICAL SPECIFICATIONS
- Brightness Uniformity(%): 98
- Color Temperature: 3,200~9,300
- Color Uniformity: ±0.015Cx,Cy
- Contrast Ratio: 3,000:1
- Max. Brightness (After Calibration): Typ. 500
- Processing Depth (bit): 16 (HDR10, HDR10 Pro)
- Visual Viewing Angle (Horizontal): 150
- Visual Viewing Angle (Vertical): 150
ELECTRICAL SPECIFICATIONS
- Frame Rate (Hz): 50 / 60
- Heat Dissipation (BTU/h/㎡, Max.): 888
- Heat Dissipation (BTU/h/Screen, Avg.): 2,218
- Heat Dissipation (BTU/h/Screen, Max.): 4,436
- Power Consumption (W/㎡, Max.): 260
- Power Consumption (W/Screen, Avg.): 650
- Power Consumption (W/Screen, Max.): 1,300
- Power Supply (V): 100 to 240
- Refresh Rate (Hz): 3,840
OPERATION SPECIFICATIONS
- IP rating Front: IP30
- IP rating Rear: IP30
- LED Lifetime (Half brightness): 100,000
- Operating Humidity: 10~90%RH
- Operating Temperature(℃): 0℃ to +40℃
