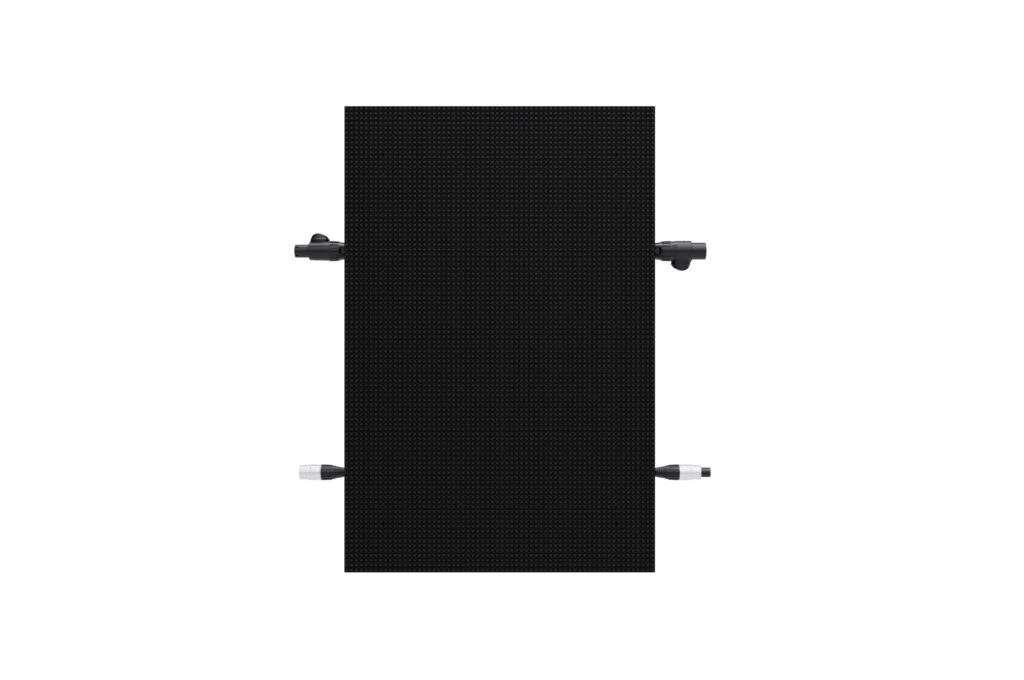

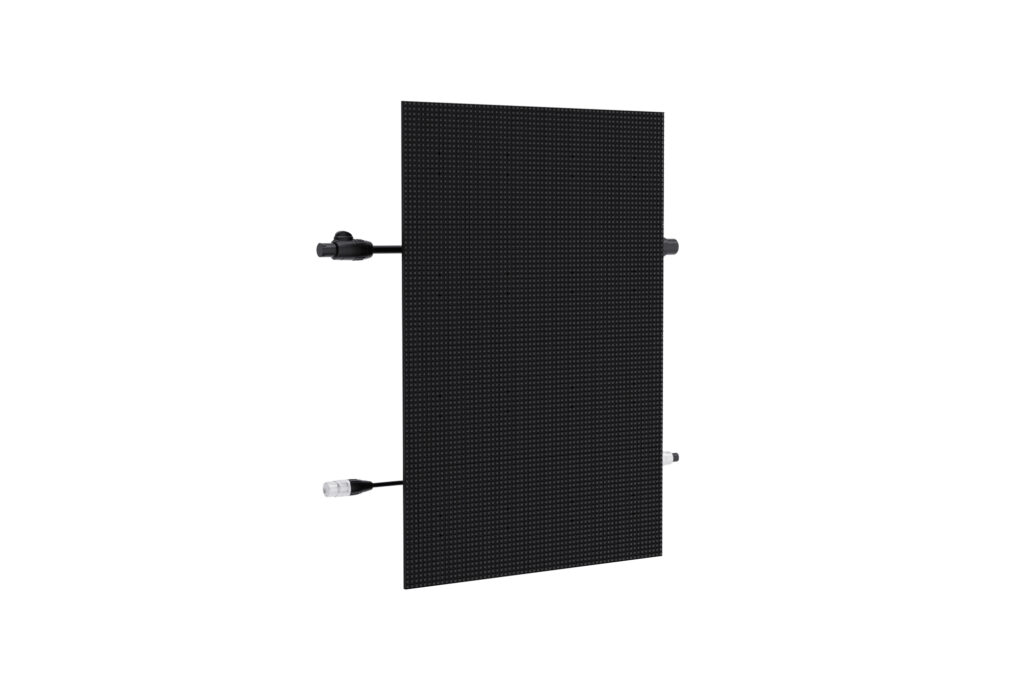

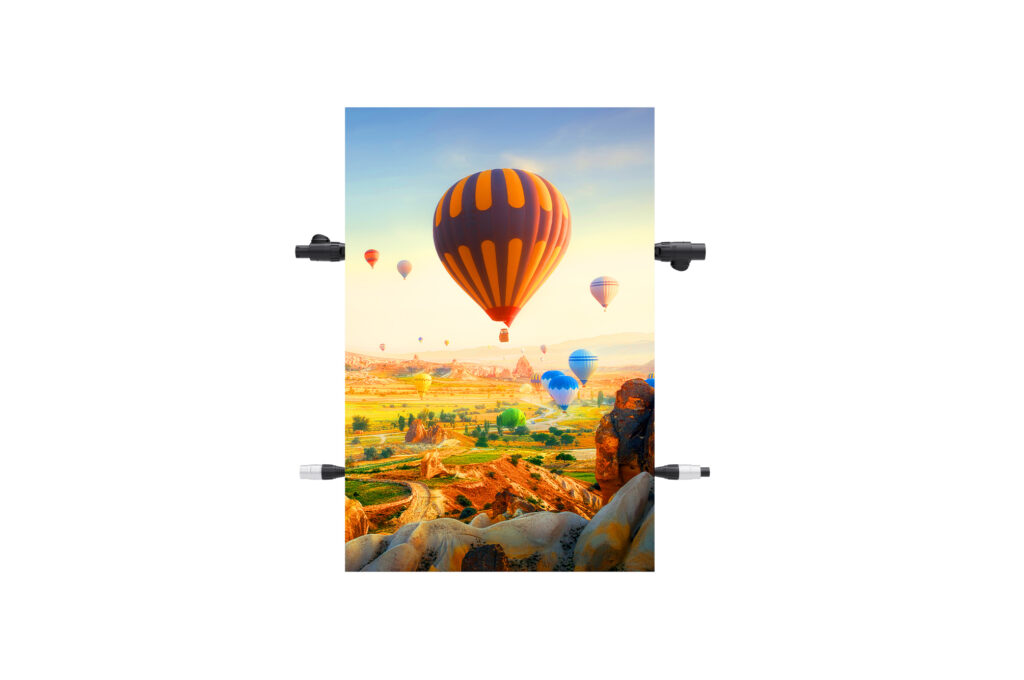

LG GNPA062 Outdoor LED Signage
Key Feature
- Pixel Pitch : 6.25 mm
- Brightness : 6,000 nit (Max.)
- Service Access : Front and Rear
- IP Rating : IP67 / IP67 (Front / Rear)
Product Description
Tech Specifications:
Physical Parameter
- Pixel Pitch (mm) 6.25
- Pixel Configuration Single SMD
- Module Resolution (W x H) 64 × 96
- Module Dimensions (W x H, mm) 400 × 600
- Weight per Module (kg) 4.6
- Cabinet Resolution (W × H) 64 × 96
- Cabinet Dimensions (W × H × D, mm) 400 × 600 × 58
- No. of Modules per Cabinet (W × H) 1 × 1
- Cabinet Surface Area (m²) 0.24
- Weight per Cabinet (kg/cabinet) 4.6
- Weight per Square Meter (kg/m²) 19
- Physical Pixel Density (pixels/m²) 25,600
- Flatness of Cabinet ±1.0
- Cabinet Material Aluminum
- Service Access Front & Rear
Optical Specifications
- Max. Brightness (After Calibration) 6,000 (Max.)
- Color Temperature (K) 3,200-9,300
- Visual Viewing Angle (Horizontal/Vertical) 160 × 120
- Brightness Uniformity 97%
- Color Uniformity ±0.003Cx,Cy
- Contrast Ratio 10,000 : 1
- Processing Depth (bit) 16 (HDR10, HDR10 Pro)
Electrical Specifications
- Power Consumption (W/Cabinet, Max.) 145
- Power Consumption (W/Cabinet, Avg.) 48
- Power Consumption (W/m², Max.) 605
- Heat Dissipation (BTU/h/Cabinet, Max.) 495
- Heat Dissipation (BTU/h/Cabinet, Avg.) 164
- Heat Dissipation (BTU/h/㎡, Max.) 2,064
- Power Supply (V) 100 to 240
- Frame Rate (Hz) 50 / 60
- Refresh Rate (Hz) 7,680
Operation Conditions
- Lifetime (Hours to Half Brightness) 100,000
- Operating Temperature (°C) -30 to +50
- Operating Humidity 0-90% RH
- IP rating Front / Rear IP67 / IP67
