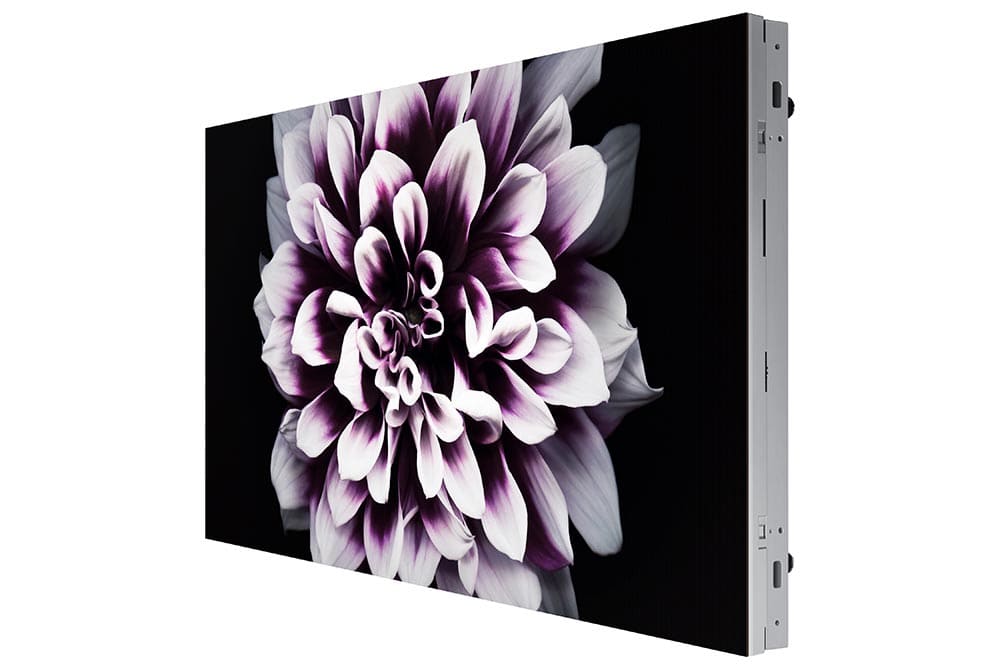

IW016J LED Signage
A next-generation display redefining what it means to deliver a one-of-a-kind visual experience.
- Perfect black with a unique ultra-low reflection black technology
- Superior color purity with an innovative color enhancing LED chip technology
- LED HDR and HDR 10+ support for optimum peak brightness and accurate grayscale expression
Physical Parameter
- Pixel Pitch 1.68mm
- Pixel Configuration 1 red, 1 green, 1 blue
- Configuration (LxH, per cabinet) 480×270 pixels
- Diode Type Flip-chip RGB LED
- Dimensions (W x H x D, Cabinet) 806.4×453.6×72.8 mm
- Dimensions (inch, inchxD, per cabinet) 36.4 x 2.9 inch
- No. of Modules (WxH, per cabinet) 4 x 3
- Weight (per cabinet/per ㎡) 12.5kg / 34.2kg
Optical Parameter
- Processor Snow processor
- Brightness (Peak/Max)(1) 1,400 nit / 1,000 nit
- Contrast Ratio (Peak/Max)(1) 10,000:1
- HDR Compatibility LED HDR / HDR10+ support / Multi-link HDR
- Viewing angle – Horizontal 160°
- Viewing angle – Vertical 140°
- Bit Depth 16 bit (Internal processing 20bit)
- Calibration D Gamma / Pixel to Pixel / Module to Module / Quality Mode
- Color Temperature – Default 6,500K+-500K(floating Bin)
- Color temperature – Adjustable 2,800K~10,000K (using S/BOX)
Electrical Parameter
- Video Rate 50/60 Hz
- Input Power Range 100~240 VAC, 50/60 Hz
- Power consumption – Max(1) 492 (W/㎡) / 180 (W/Cabinet)
- Power consumption – Typical(1) 232 (W/㎡) / 85 (W/Cabinet)
- Heat Generation – Max (BTU/Cabinet) 614 (BTU/Cabinet) / 1,680 (BTU/m²)
- Heat generation – Average(per hour) 290 (BTU/Cabinet) / 793 (BTU/m²)
- Refresh rate 3,840 Hz
