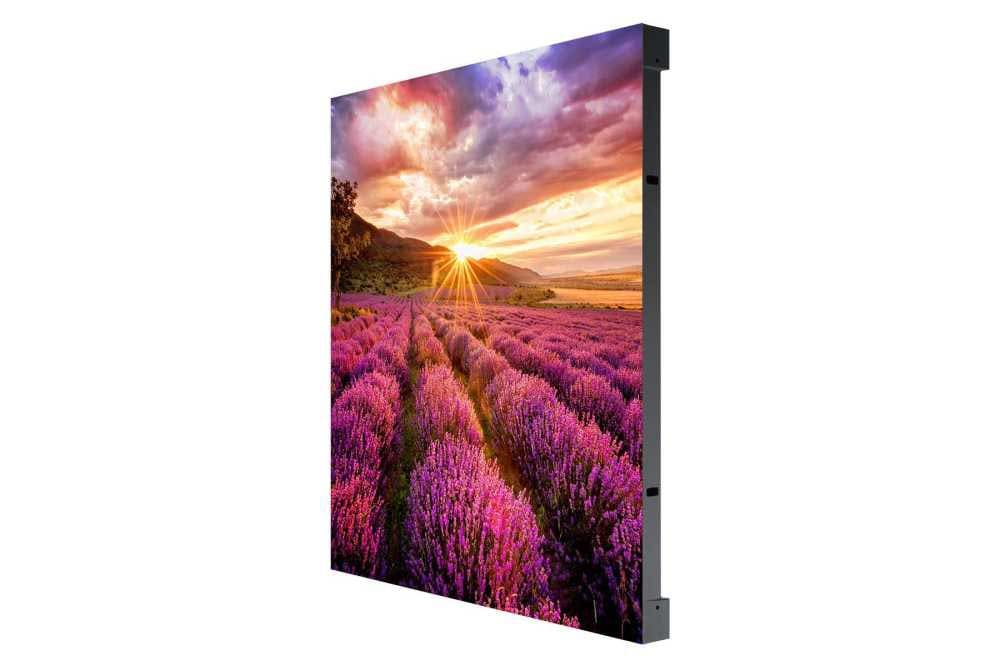

Indoor IF015H-E LED Signage

Physical Parameter

  • Pixel Pitch1.5 mm
  • Pixel Configuration1 red, 1 green, 1 blue
  • Configuration (LxH, per cabinet)320×360 pixels
  • Diode TypeSurface Mount Device (SMD)
  • Dimensions (㎜, LxHxD, per cabinet)480x540x65mm
  • Dimensions (inch, inchxD, per cabinet)28.5 inch x 2.56 inch
  • Weight (per cabinet/per ㎡)5.8kg

Optical Parameter

  • Brightness (Peak/Max)(1)1,200 nit / 600 nit
  • Contrast Ratio (Peak/Max)(1)10,000:1 / 5,000:1
  • Viewing angle – Horizontal160°
  • Viewing angle – Vertical160°
  • Bit Depth16bit per Color
  • Color Temperature – Default6,500K
  • Color temperature – Adjustable2,800 ~ 10,000K (use S/BOX)

Electrical Parameter

  • Video Rate50/60 Hz
  • Cabinet – Input Power Range100~240 VAC, 50/60 Hz
  • Power consumption – Max770 (W/㎡) / 200 (W/Cabinet)
  • Power consumption – Typical258 (W/㎡) / 68 (W/Cabinet)
  • Heat Generation – Max(BTU/SF)245 BTU/SF per hour
  • Refresh rate1,920Hz, 3,840 Hz Selectable

Operation Conditions

  • Working Temperature / Humidity0°C~40°C / 10~80%RH
  • Storage Temperature / Humidity-20°C~45°C / 5~95%RH
  • IP RatingIP20
  • LED Lifetime100,000 hours to half brightness
