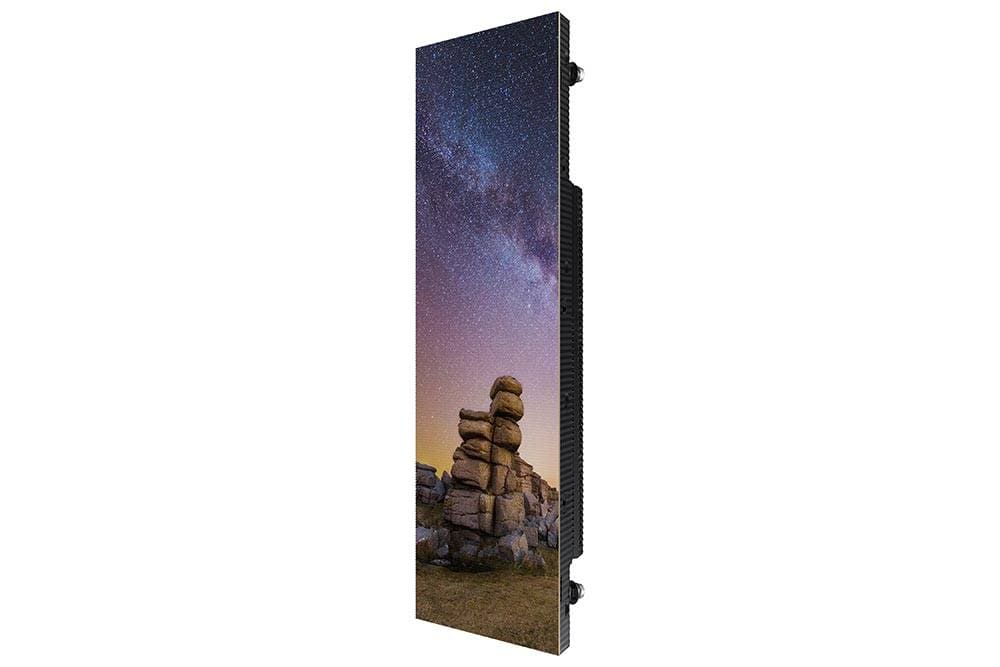

IE025R-F SMART LED Signage
P2.5 LED Signage that offers an ideal combination of superior picture quality and intuitive usability
- Cost-saving solution through easier installation and affordable price
- Support for various installation scenarios through flexible design
- LED HDR technology for clear, accurate picture presentation
Physical Parameter
- Pixel Pitch 2.5 mm
- Pixel Configuration 1 red, 1 green, 1 blue
- Configuration (LxH, per cabinet) 96×216 pixels
- Diode Type Surface Mount Device (SMD)
- Dimensions (㎜, LxHxD, per cabinet) 240x540x81 mm
- Dimensions (inch, inchxD, per cabinet) 23.3 inch x 3.18 inch
- No. of Modules (WxH, per cabinet) 1 x 3
- Weight (per cabinet/per ㎡) 3.2kg
Optical Parameter
- Brightness (Peak/Max)(1) 1,200 nit / 600 nit
- Contrast Ratio (Peak/Max)(1) 3,000:1
- Viewing angle – Horizontal 160°
- Viewing angle – Vertical 160°
- Bit Depth 16 bit (Internal processing 18bit)
- Color Temperature – Default 6,500K
- Color temperature – Adjustable 2,800 ~ 10,000K (use S/BOX)
Electrical Parameter
- Video Rate 50/60 Hz
- Cabinet – Input Power Range 100~240 VAC, 50/60 Hz
- Power consumption – Max 386 (W/㎡) / 50 (W/Cabinet)
- Power consumption – Typical 128 (W/㎡) / 17 (W/Cabinet)
- Heat Generation – Max(BTU/SF) 122.3 BTU/SF per hour
- Refresh rate 3,840 Hz
Package
- Box Dimension (WxDxH) 653 x 148 x 354
- Box Volume (m3) 0.342
- Package Weight (kg, per cabinet) 4.9 kg
