Product Description

Unprecedented Cost-Effectiveness:

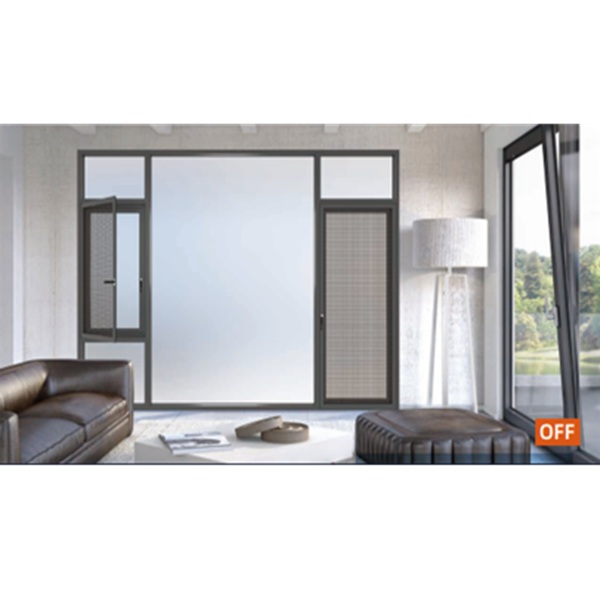

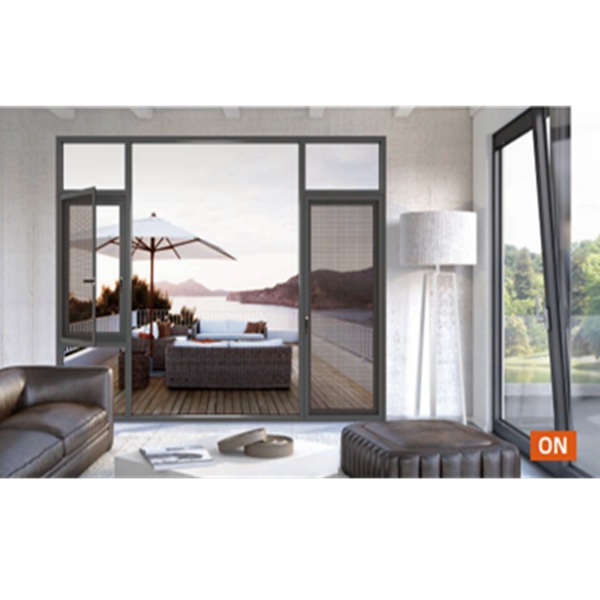

• Smart doors and windows are a brand new product from Filmbase, which perfectly combines PDLC glass with door and window systems. It can switch between transparency and privacy modes with one click, and has multiple functions such as heat insulation, sound insulation, and energy saving.

Application:

• Widely used in luxury villas, balconies, lobbies, hotel rooms, office partitions, medical clinics, and commercial display spaces.

Product Parameters:

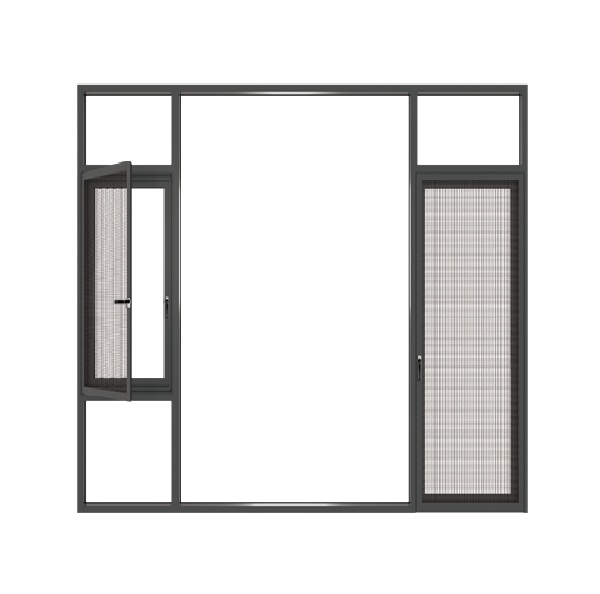

• Products: 120-Window screen integrated
• Standard glass: 5+5+15a+5 (84 Super White with accessories)
• Door frame color: Metallic Gray, Brown, Iron Crystal Black, Sand Gray
• Detailed parameters
  • Material wall thickness: 1.8mm, frame width 120mm, opening fan width 70mm.
  • Can do outside open, up hanging, outside flat open up hanging, open fan height within 1500mm, open fan width within 750mm, can do flat door, flat door open fan within 2300mm, flat door activity fan width within 1000mm, the minimum height within 500mm. Hydraulic cushion hinges are required at an additional cost of 150 RMB/pc.
• Products: 120-Window screen integrated
• Standard glass: 5+5+15a+5 (84 Super White with accessories)
• Door frame color: Metallic Gray, Brown, Iron Crystal Black, Sand Gray
• Detailed parameters
  • Material wall thickness: 2.0mm, frame width 113mm, opening fan width 70mm.
  • Can do outside open, up hanging, outside flat open up hanging, open fan height within 1500mm, open fan width within 750mm, can do flat door, flat door open fan within 2300mm, flat door activity fan width within 1000mm, the minimum height within 500mm. Hydraulic cushion hinges are required at an additional cost of 150 RMB/pc.

Optical Parameter:

• Items:
  • Operating voltage:
    • ON/OFF
      • ON 60V
    • Test Methods/Standards
      • Multimeter/Voltage Regulator,WGW
  • Power consumption:
    • ON/OFF
      • ON ≤ 5W/m2
    • Test Methods/Standards
      • Multi-parameter electric measuring instrument
  • Viewing angle:
    • ON/OFF
      • ON ≥ 160°
    • Test Methods/Standards
      • Visual Inspection
  • Uv blocking rate:
    • ON/OFF
      • OFF ≥ 99%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Infrared blocking rate:
    • ON/OFF
      • OFF ≥ 60%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Response time:
    • ON/OFF
      • OFF→ON ≤ 30 ms
      • ON→OFF ≤ 200 ms
    • Test Methods/Standards
      • Liquid crystal parameter integrated tester
      • Liquid crystal parameter integrated tester
  • Operating temperature
    • ON/OFF
      • – -30°C ~ 85°C
    • Test Methods/Standards
      • constant temperature and humidity testing machine
  • Life-span
    • ON/OFF
      • 100000 Hours
    • Test Methods/Standards
      • GB18910.5-2008
  • Switching times
    • ON/OFF
      • ≥ 2 million times
    • Test Methods/Standards
      • Self-made on/off tester
