Filmbase Skyscraper 01 Transparent LED Glass
Filmbase media glass is a cutting-edge technological glass that combines precision manufacturing, materials science, Heat dissipation tech, system integrated chip design control systems, cloud services and other multidisciplinary technologies.
Contact NowProduct Description

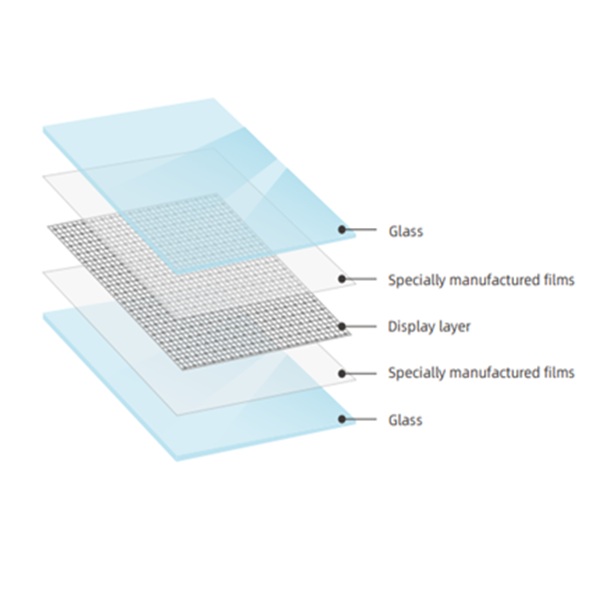

Technical Principles:
- Filmbase media glass is a cutting-edge technological glass that combines precision manufacturing, materials science ,Heat dissipation tech, system integrated chip design control systems, cloud services and other multidisciplinary technologies.
Applications:

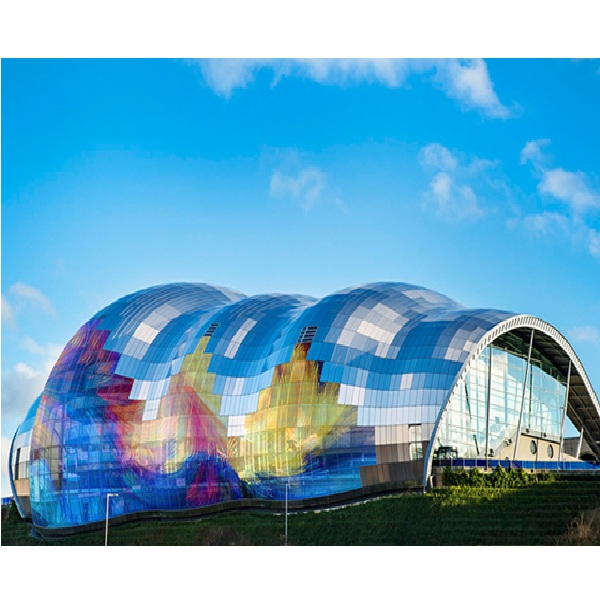

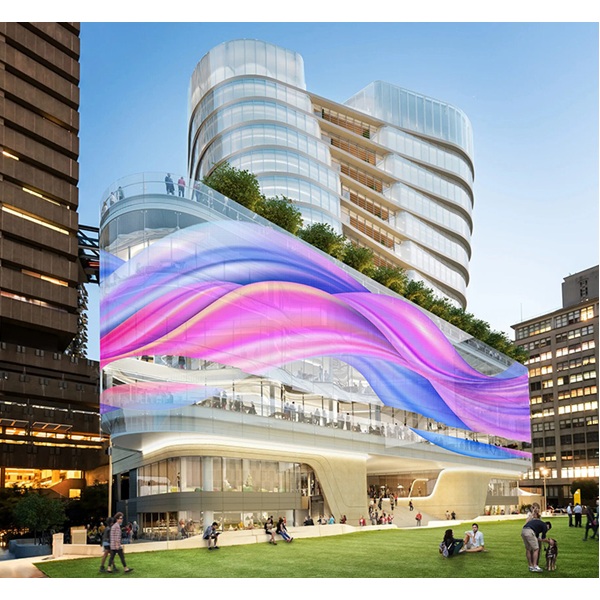

- Widely used in glass curtain walls, brand chain stores, commercial centers, exhibitiondisplays,windows, space decoration and other occasions.
Specification:
- Products Skyscraper 01
- Pitch P8*8
- Screen brightness (nits)* 0~5000
- Visual transparency ≥95%
- Pixel pitch 8×8mm
- Module W240 x H≤1500
- Pixel density 15625
- Best view distance ≥8m
- Viewing angle ≥160°
- Average square power 230W
- Maximum square power 650W
Technical Parameters:
- Pixel specification 1R1G1B
- Pixel package SMD2020
- Screen material Tempered Glass
- Grayscale level 65536
- Refresh rate ≥3840
- Brightness adjustment 32X65536
- Operating voltage +5VDC
- Working temperature -20°C~55°C
- Storage temperature -40°C~80°C
- Working humidity 10-90%
- Storage humidity 5-95%
- Control system Transmitter cards, asynchronous cards, asynchronous playback boxes, video processors
