Product Description

Unprecedented Cost-Effectiveness:

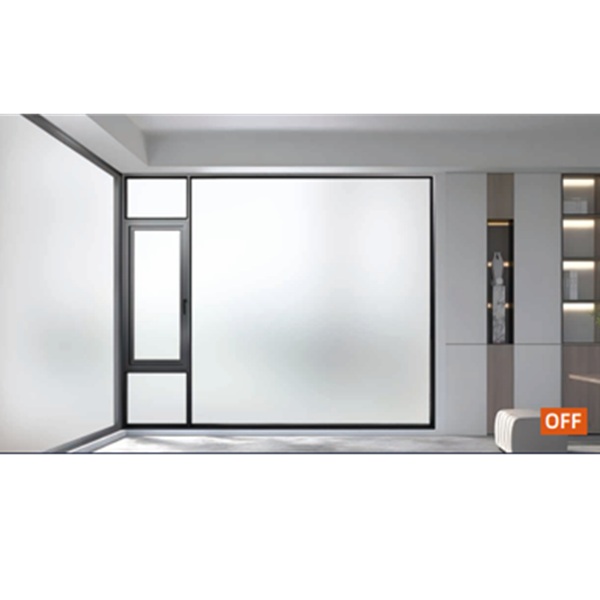

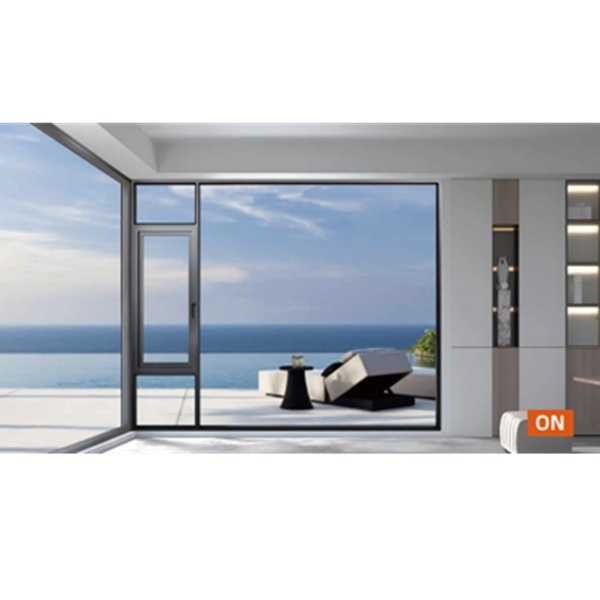

• Smart doors and windows are a brand new product from Filmbase, which perfectly combines PDLC glass with door and window systems. It can switch between transparency and privacy modes with one click, and has multiple functions such as heat insulation, sound insulation, and energy saving.

Application:

• Widely used in luxury villas, balconies, lobbies, hotel rooms, office partitions, medical clinics, and commercial display spaces.

Product Parameters:

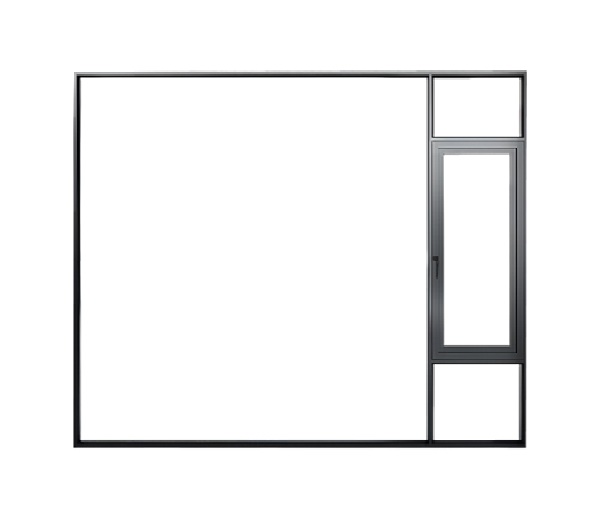

• Products: 70-Broken bridge type aluminum alloy Casement window (openable inside and outside)
• Standard Glass: 5+5+15a+5 (84 Super White with accessories)
• Door Frame Colour: Metallic Gray, Brown, Iron Crystal Black, Sand Gray
• Detailed parameters:
  • Material wall thickness: 2.0mm, frame width 70mm, opening fan width 75mm.
  • Can do inside open, outside open, upward hanging, outside flat open upward hanging. Inside open inside inverted, open the fan height of 1500mm, open the fan width of 750mm, can be done within the casement door, casement door activity fan 2300mm, casement door open the fan width of 1000mm, the bottom height of 500mm. Hydraulic cushion hinges are available
    for an additional RMB 150/pc.

Optical Parameter:

• Items:
  • Operating voltage:
    • ON/OFF
      • ON 60V
    • Test Methods/Standards
      • Multimeter/Voltage Regulator,WGW
  • Power consumption:
    • ON/OFF
      • ON ≤ 5W/m2
    • Test Methods/Standards
      • Multi-parameter electric measuring instrument
  • Viewing angle:
    • ON/OFF
      • ON ≥ 160°
    • Test Methods/Standards
      • Visual Inspection
  • Uv blocking rate:
    • ON/OFF
      • OFF ≥ 99%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Infrared blocking rate:
    • ON/OFF
      • OFF ≥ 60%
    • Test Methods/Standards
      • Optical teansmittance tester
  • Response time:
    • ON/OFF
      • OFF→ON ≤ 30 ms
      • ON→OFF ≤ 200 ms
    • Test Methods/Standards
      • Liquid crystal parameter integrated tester
      • Liquid crystal parameter integrated tester
  • Operating temperature
    • ON/OFF
      • – -30°C ~ 85°C
    • Test Methods/Standards
      • constant temperature and humidity testing machine
  • Life-span
    • ON/OFF
      • 100000 Hours
    • Test Methods/Standards
      • GB18910.5-2008
  • Switching times
    • ON/OFF
      • ≥ 2 million times
    • Test Methods/Standards
      • Self-made on/off tester
