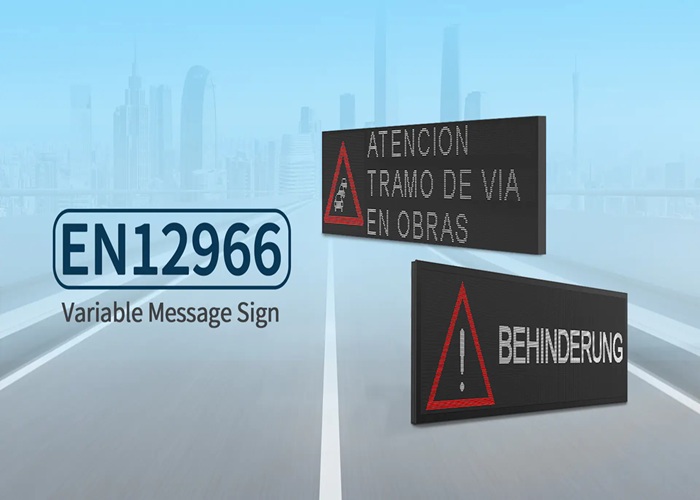

EN12966 Variable Message Sign
- Model VMS20L-RGB / VMS25L-RGB / VMS31.25L-RGB
- Pixel Pitch (mm) 20 / 25 / 31.25
- Module Resolution (pixels) 8×16 / 8×16 / 8×8
- Size of Module (mm) (HxW) 160×320 / 200×400 / 250×250
Product Description
VMS L-Series:
- Model VMS20L-RGB / VMS25L-RGB / VMS31.25L-RGB
- Pixel Pitch (mm) 20 / 25 / 31.25
- Module Resolution (pixels) 8×16 / 8×16 / 8×8
- Size of Module (mm) (HxW) 160×320 / 200×400 / 250×250
Optical Characteristics:
- Conformity Compliant with EN12966 Standards L3/L3*, R3, C2, B1, B2, B3, B4, B5, B6
- Luminance Red > 3100 cd/m² Green > 3720 cd/m Yellow> 7440 cd/m² White > 12400 cd/m²
- Luminance RatioR3
- ColorC2
- Beam WidthB1, B2, B3, B4, B5, B6
- Brightness Control 100 Levels
Physical Characteristics:
- Enclosure Material Aluminum
- Enclosure Surface Powder Coated, Matte Black (Other Colors Available)
- Working Temperature (°C) T1 (-15°C to +60°C); T2 (-25°C to +55°C); T3 (-40°C to +40°C)
- Humidity RangeRH<95%
- PollutionD3
- Mechanical ProtectionP1 (IP44), P2 (IP54), P3 (IP56), IP65 (Non-EN12966 Mandatory Requirements, >P2), IP66(Non-EN12966 Mandatory Requirements, >P3)
- Maintenance Back Maintenance
Electrical Specifications:
- Power SupplyAC: 90-260V (50/60Hz)
- Solar Power System DC12V / 24V
- CommunicationRS232 / RS485 / Ethernet Via RJ45 / GPRS/3G/4G/Optic Fiber
- ProtocolNTCIP 1203/MODBUS / UTMC/XML/JETFILE II / Profibus / RSMP
- EMC/FCC CertificationCompliant with EN50293; FCC Part 15B:2017; ICES-003:2016
- CertificationEN12966, ETL, CETL
VMS M-Series:
- Model VMS10M-RGB / VMS12M-RGB / VMS16M-RGB / VMS20M-RGB
- Pixel Pitch (mm) 10 / 12 / 16 / 20
- Module Resolution (pixels) 12×24 / 8×16(B7) / 8×16(*)(B7) / 8×16(B6)
- Size of Module (mm) (HxW) 120×240 / 96×192 / 128×256 / 160×320
Optical Characteristics:
- ConformityCompliant with EN12966 Standards L3/L3*, R3, C2, B1, B2, B3, B4, B5, B6, B7
- Luminance Red > 3100 cd/m² Green > 3720 cd/m² Yellow> 7440 cd/m² White > 12400 cd/m²
- Luminance RatioR3
- ColorC2
- Beam WidthB1, B2, B3, B4, B5, B6, B7
- Brightness Control 100 Levels
Physical Characteristics:
- Enclosure MaterialAluminum
- Enclosure SurfacePowder Coated, Matte Black (Other colors Available)
- Working Temperature (°C)T1 (-15°C to +60°C); T2 (-25°C to +55°C); T3 (-40°C to +40°C)
- Humidity RangeRH<95%
- PollutionD3
- Mechanical ProtectionP1 (IP44), P2 (IP54), P3 (IP56), IP65 (Non-EN12966 Mandatory Requirements, >P2), IP66 (Non-EN12966 Mandatory Requirements, >P3)
- Maintenance Back Maintenance
Electrical Specifications:
- Power SupplyAC: 90-260V (50 / 60Hz)
- Solar Power SystemDC12V/24V
- CommunicationRS232 / RS485 / Ethernet Via RJ45 / GPRS/3G/4G/ Optic Fiber
- ProtocolNTCIP 1203/MODBUS/UTMC/XML / JETFILE II / Profibus / RSMP
- EMC/FCC CertificationCompliant with EN50293; FCC Part 15B:2017; ICES-003:2016
- CertificationEN12966, ETL, CETL
