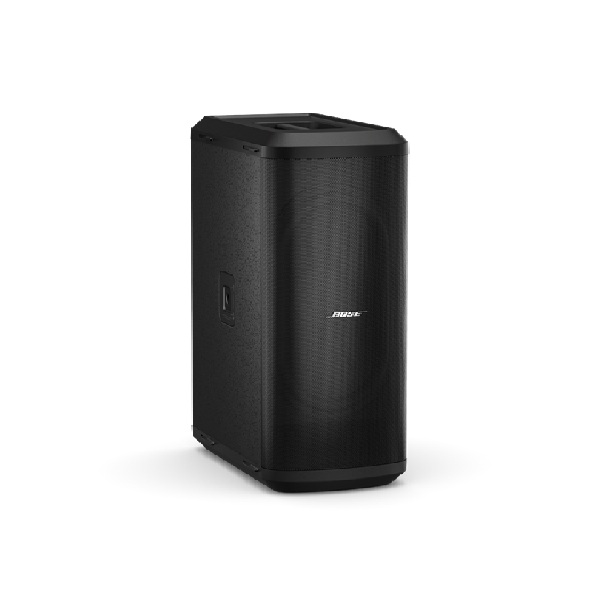

Product Description

Technical Specification:

AMPLIFICATION:

• Number of Channels 1
• Power Class Class D

AUDIO INPUTS, ANALOG:

• Input Channels 2
• Connectors (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)
• Sensitivity Options +10 dB to +45 dB, input to driver
• Phantom Power No

COMPLIANCE:

• Safety UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

ELECTRICAL:

• AC Power Connector IEC, SubMatch
• AC Power Input 100–240 VAC (±20%, 50/60 Hz)
• Current Draw, Inrush 15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz

GENERAL:

• Software Applications Bose Music (Android, iOS)
• Computer Interface Connection USB Type-C

INDICATORS AND CONTROLS:

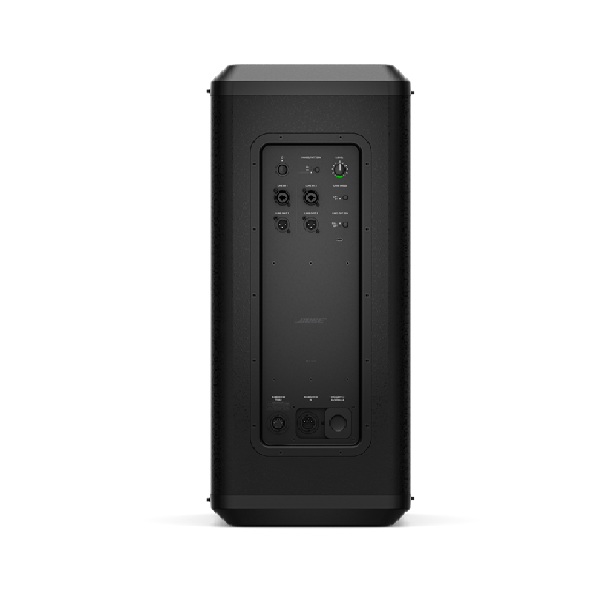

• Controls, Rear Panel Power, EQ, and Volume Control
• LED Status Indicators (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs

INTEGRATED DSP:

• DSP-Enabled Yes
• Processing Functions Input EQ, output EQ, phase/pattern polarity inversion

PHYSICAL:

• Colors Black
• Enclosure Material High-impact polypropylene, birch plywood

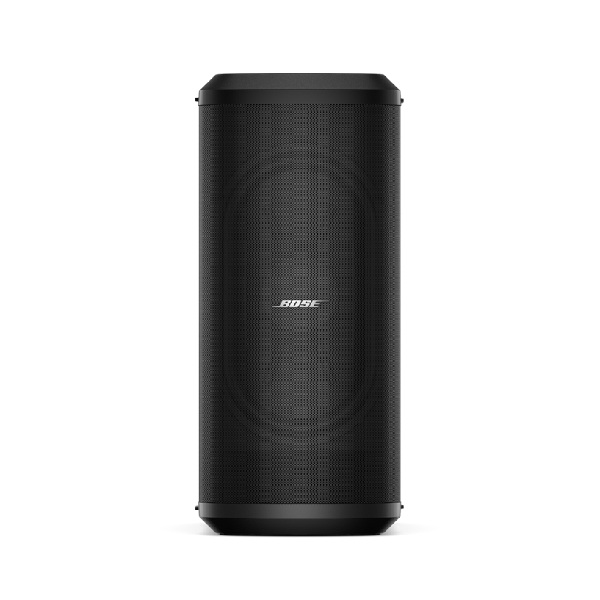

• Grille Perforated steel, powder-coated finish
• Cooling System Convection cooling
• Product Dimensions (H×W×D) 21.0 in × 10.2 in × 20.8 in (533 mm × 260 mm × 529 mm)
• Net Weight 34.1 lb (15.5 kg)
• Shipping Dimensions (H×W×D) 24.4 in × 24.4 in × 13.0 in (620 mm × 620 mm × 330 mm)
• Shipping Weight 39.6 lb (18.0 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 32 Hz – 250 Hz
• Coverage, Horizontal 0°
• Calculated Maximum SPL @ 1 m 124.6 dB
• Power Handling, Peak 480 W
• Coverage, Vertical Omnidirectional (with -10 dB rear rejection in cardioid mode)

TRANSDUCERS:

• Crossover 200 Hz
• Low-Frequency 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver
