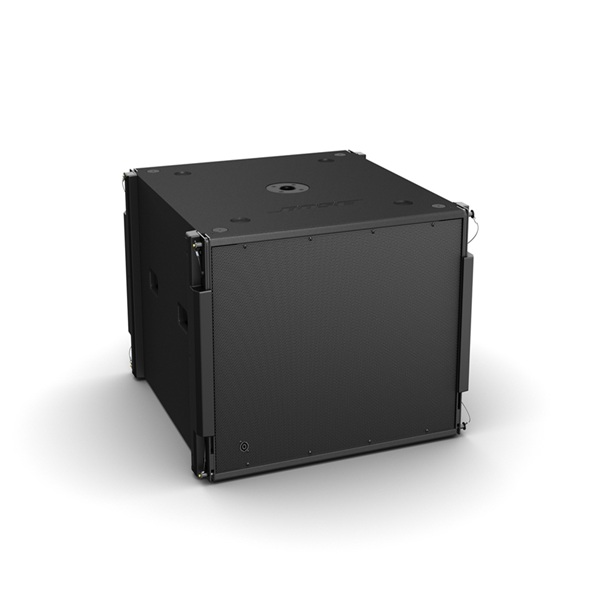

Product Description

Technical Specification:

COMPLIANCE:

• EN 54-24 Certified No

PHYSICAL:

• Colors Black
• Enclosure Material Baltic birch plywood
• Grille 16-gauge (1.5 mm) perforated steel, powder-coated finish
• Suspension/Mounting 4-point “quick pin” rigging, 4 × M10 top & 4 × M10 bottom inserts, M20 pole cup
• Product Dimensions (H×W×D) 21.2 in × 30.1 in × 30.5 in (540 mm × 765 mm × 775 mm)
• Net Weight 136.5 lb (61.9 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 29 Hz – 300 Hz
• Coverage, Horizontal Omnidirectional
• Calculated Maximum SPL @ 1 m 121 dB (free field/array), 127 dB (half-space/ground stack) continuous / 127 dB (free field/array), 133 dB (half-space/ground stack) peak
• Nominal Impedance 4 Ω
• Power Handling, long-term continuous 750 W
• Power Handling, Peak 3000 W
• Sensitivity (SPL/1 W at 1 m) 92 dB (free field/array), 98 dB (half-space/ground stack)
• Coverage, Vertical Omnidirectional

TRANSDUCERS:

• Crossover 60 Hz – 100 Hz, requires active crossover in DSP

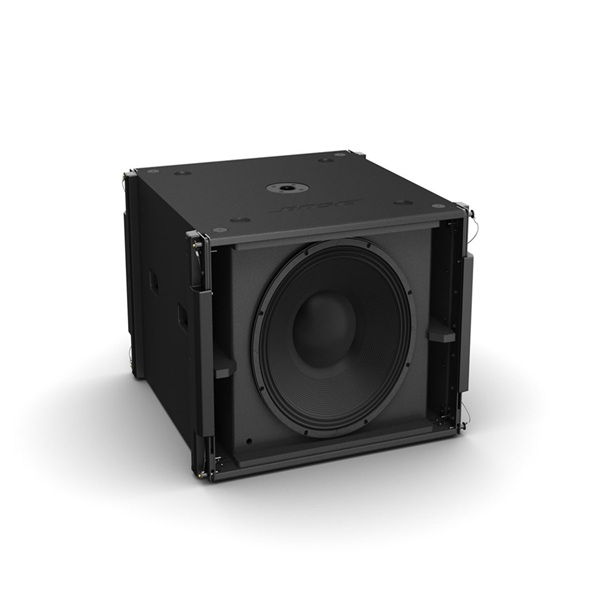

• Low-Frequency 1 × Bose Professional LF18 neodymium high-excursion 18 in (457 mm) woofer, 4.5 in (114 mm) voice coil
• Warranty Period 5 years
