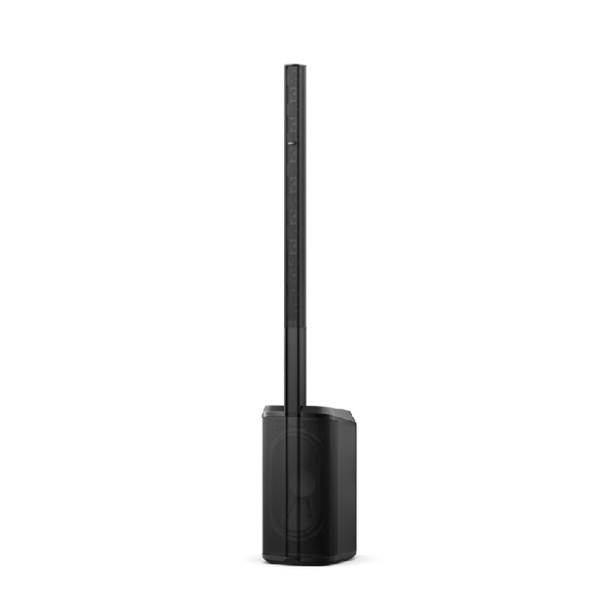

Product Description

Technical Specification:

AMPLIFICATION:

• Number of Channels 2
• Power Class Class D

AUDIO INPUTS, ANALOG:

• Input Channels 3
• Connectors (1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming
• Sensitivity Options -100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver
• Phantom Power 48 VDC, Channels 1 & 2

COMPLIANCE:

• Safety UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

ELECTRICAL:

• AC Power Connector IEC
• AC Power Input 100–240 VAC (±15%, 50/60 Hz)
• Current Draw, Inrush 15.7 A at 120 VAC, 60 Hz / 28.4 A at 230 VAC, 50 Hz

GENERAL:

• Software Applications Bose Music (Android, iOS)
• Computer Interface Connection USB Type-C

INDICATORS AND CONTROLS:

• Controls, Rear Panel 3 digital rotary encoders
• LED Status Indicators (1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

INTEGRATED DSP:

• DSP-Enabled Yes
• Presets ToneMatch presets
• Processing Functions System EQ, reverb

PHYSICAL:

• Colors Black
• Enclosure Material Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
• Grille Perforated steel, powder-coated finish
• Cooling System Convection cooling
• Product Dimensions (H×W×D) 79.2 in × 14.0 in × 18.0 in (2011 mm × 355 mm × 456 mm)
• Net Weight 50.6 lb (23.0 kg)
• Shipping Dimensions (H×W×D) 44.0 in × 18.1 in × 25.6 in (1118 mm × 460 mm × 650 mm)
• Shipping Weight 62.6 lb (28.4 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 31 Hz – 18 kHz
• Coverage, Horizontal 180°
• Calculated Maximum SPL @ 1 m 124 dB
• Power Handling, Peak 1000 W
• Coverage, Vertical 0°/30°

TRANSDUCERS:

• Crossover 200 Hz
• High-Frequency 16 × 2 in (51 mm) drivers
• Low-Frequency 1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver
• Warranty Period 2 years
