Product Description

Technical Specification:

COMPLIANCE:

• EN 54-24 Certified Yes
• Safety Agency Ratings EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 & NFPA 72; CSA C22.1 Section 32

PHYSICAL:

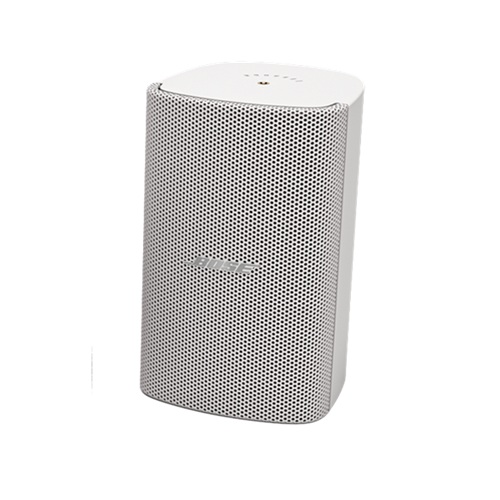

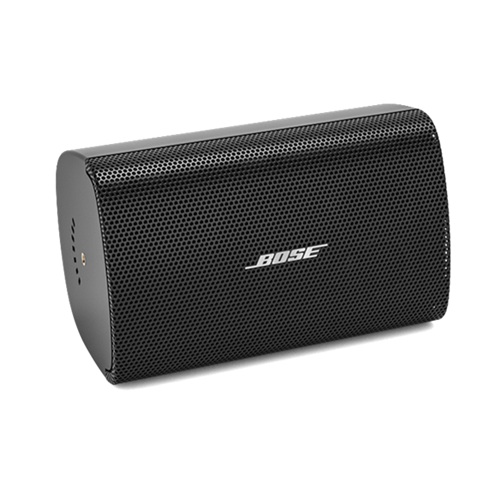

• Colors Black (similar to RAL 9005), white (similar to RAL 9003)
• Enclosure Material Engineered plastics, highly UV fade-resistant
• Grille Perforated steel, powder-coated finish, tamper-resistant design
• Ingress Protection IP55
• Logo Removable
• Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F)
• Product Dimensions (H×W×D) 7.1 in × 4.4 in × 4.5 in (182 mm × 113 mm × 114 mm), loudspeaker / 7.7 in × 4.4 in × 5.3 in (196 mm × 113 mm × 135 mm), loudspeaker with bracket
• Net Weight 3.2 lb (1.4 kg), loudspeaker with grille & bracket (single)
• Shipping Weight 9.2 lb (4.2 kg), pair

PERFORMANCE:

• Frequency Range (-10 dB) 83 – 19,000 Hz
• Coverage, Horizontal 145°
• Calculated Maximum SPL @ 1 m 99 dB
• Nominal Impedance 16 Ω (transformer bypass)
• Power Handling, long-term continuous 16 W
• Power Handling, Peak 64 W
• Sensitivity (SPL/1 W at 1 m) 87 dB
• Transformer Taps, 100V 2, 4, 8, 16 W, bypass
• Transformer Taps, 70V 1 W, 2 W, 4 W, 8 W, 16 W, bypass
• Coverage, Vertical 140°

TRANSDUCERS:

• Driver Protection Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
• Low-Frequency 1 × 2.25 in (57 mm) woofer
