Product Description

Technical Specification:

COMPLIANCE:

• EN 54-24 Certified Yes
• Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

PHYSICAL:

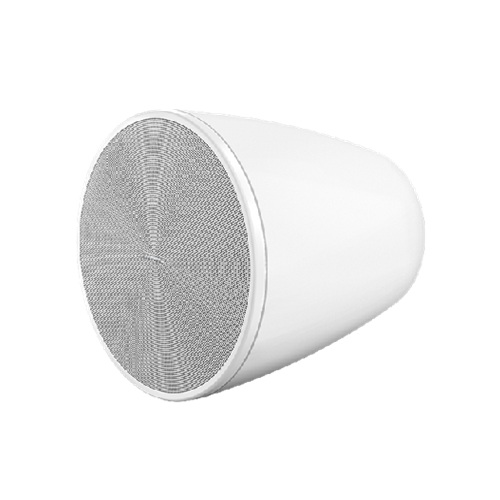

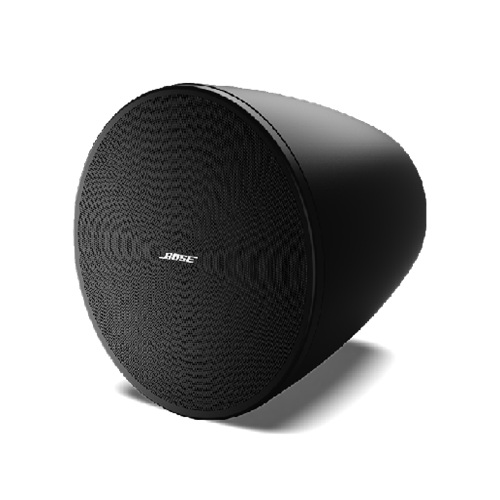

• Colors Black (similar to RAL 9005), white (similar to RAL 9003)
• Enclosure Material Engineered plastics
• Environmental Indoor only
• Grille Perforated steel, powder-coated finish
• Logo Removable Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 5.9 in × 7.2 in (149 mm × 183 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
• Net Weight 3.3 lb (1.5 kg), loudspeaker with grille (single)
• Shipping Weight 9.0 lb (4.1 kg), pair

PERFORMANCE:

• Frequency Range (-10 dB) 83 – 19,000 Hz
• Coverage, Horizontal 140°
• Calculated Maximum SPL @ 1 m 99 dB
• Nominal Impedance 16 Ω (transformer bypass)
• Power Handling, long-term continuous 16 W Power Handling, Peak 64 W
• Sensitivity (SPL/1 W at 1 m) 87 dB Transformer Taps, 100V 2, 4, 8, 16 W, bypass
• Transformer Taps, 70V 1 W, 2 W, 4 W, 8 W, 16 W, bypass
• Coverage, Vertical 140°

TRANSDUCERS:

• Driver Protection Recommended high-pass protection 85 Hz with minimum 24-dB/octave filter
• Low-Frequency 1 × 2.25 in (57 mm) woofer
