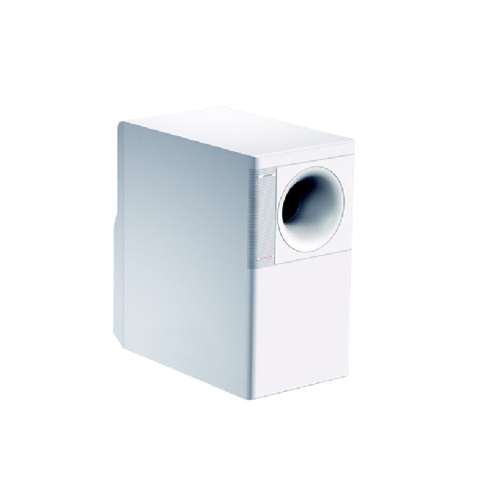

Product Description

Technical Specification:

COMPLIANCE:

• EN 54-24 Certified No

PHYSICAL:

• Colors Black, white
• Enclosure Material High-density wood composite with solid color PVC laminate
• Environmental Indoor only
• Suspension/Mounting Wall-mount bracket, preattached
• Product Dimensions (H×W×D) 14.0 in × 7.5 in × 13.6 in (356 mm × 191 mm × 345 mm) / width with bracket: 8.8 in (222 mm)
• Net Weight 17.5 lb (7.9 kg)
• Shipping Weight 25.0 lb (11.3 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 40 Hz – 315 Hz
• Coverage, Horizontal Omnidirectional below 200 Hz
• Calculated Maximum SPL @ 1 m Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak
• Nominal Impedance 5 Ω mono direct (transformer bypassed)
• Power Handling, long-term continuous 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
• Power Handling, Peak 70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono
• Recommended Signal Processing Recommended
• Sensitivity (SPL/1 W at 1 m) Per channel: 76 dB / Mono: 79 dB
• Transformer Taps, 100V 25 W, 50 W, 100 W, 200 W
• Transformer Taps, 70V 25 W, 50 W, 100 W, 200 W
• Coverage, Vertical Omnidirectional below 200 Hz

TRANSDUCERS:

• Driver Protection Recommended high-pass filter 40 Hz high-pass filter
• Low-Frequency 5.25 in (133 mm) dual-voice-coil low-frequency driver
