Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL 1480A, UL 2043

PHYSICAL:

• Colors White (similar to RAL 9003), paintable

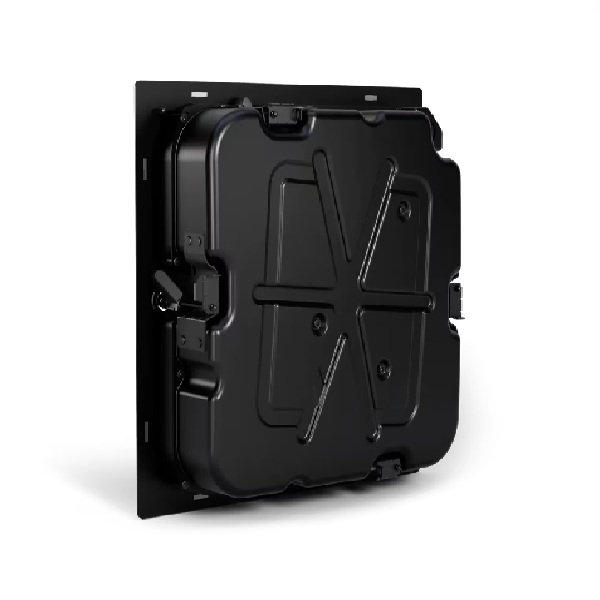

• Enclosure Material EEngineered-plastics front baffle with integrated steel-formed enclosure
• Environmental Indoor only
• Grille Microperforated steel, powder-coated finish, paintable
• Ceiling Cutout 345 × 345 × 100 mm (13.6 × 13.6 × 4.0 in), length × width × mounting depth
• Suspension/Mounting (4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points

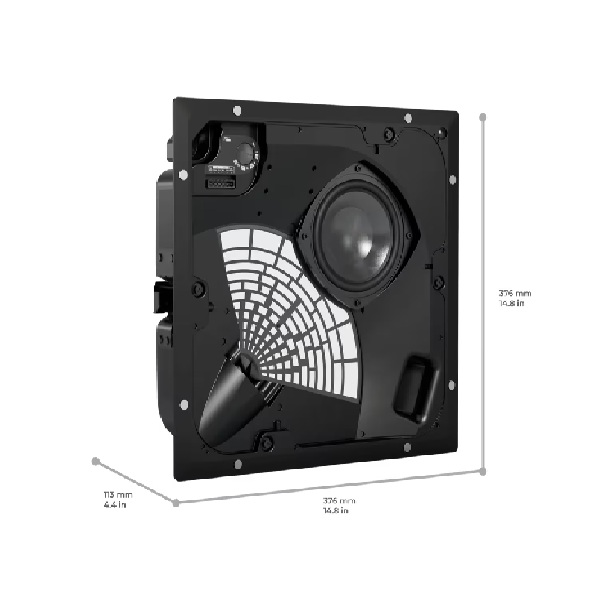

• Product Dimensions (H×W×D) 339 mm × 339 mm × 100 mm (13.4 in × 13.4 in × 3.9 in) enclosure / 390 mm × 390 mm × 13 mm (15.4 in × 15.4 in × 0.5 in) grille flange
• Net Weight 16.6 lb (7.5 kg), loudspeaker with grille (single)
• Shipping Weight 11.0 kg (24.3 lb)

PERFORMANCE:

• Frequency Range (-10 dB) 45 Hz – 19,000 Hz
• Coverage, Horizontal 90°
• Calculated Maximum SPL @ 1 m 110 dB continuous, 116 dB peak
• Nominal Impedance 8 Ω (transformer bypassed)
• Power Handling, long-term continuous 32W
• Power Handling, Peak 128W
• Recommended Signal Processing Recommended but not required
• Sensitivity (SPL/1 W at 1 m) 91 dB
• Transformer Taps, 100V 8 W, 16 W, 32 W, bypass
• Transformer Taps, 70V 4 W, 8 W, 16 W, 32 W, bypass
• Coverage, Vertical 80°

TRANSDUCERS:

• Crossover 1 kHz, passive 2-way crossover with integrated 70/100V transformer
• Driver Protection Recommended high-pass protection 55 Hz with minimum 24-dB/octave filter

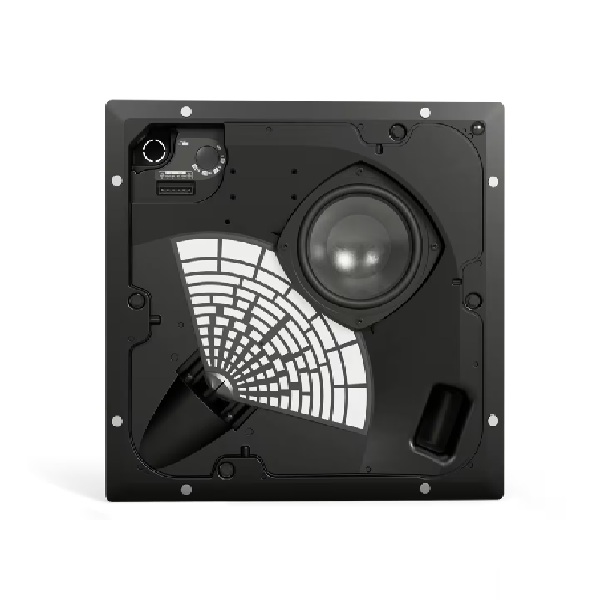

• High-Frequency 1 × compression driver, 1.3 in (33 mm) voice coil
• Low-Frequency 1 × 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil
