Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL 1480A, UL 2043

PHYSICAL:

• Colors White (similar to RAL 9003), paintable

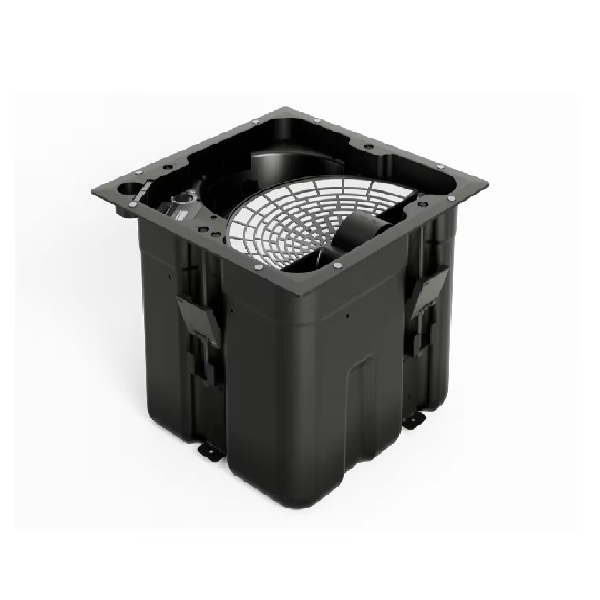

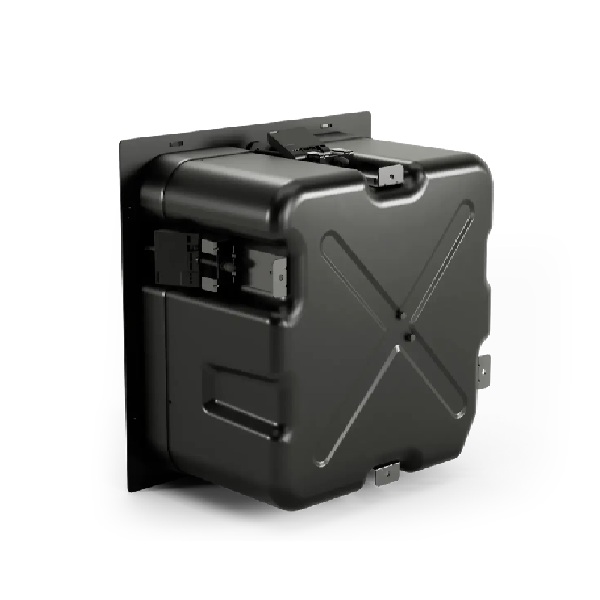

• Enclosure Material EEngineered-plastics front baffle with integrated steel-formed enclosure
• Environmental Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation

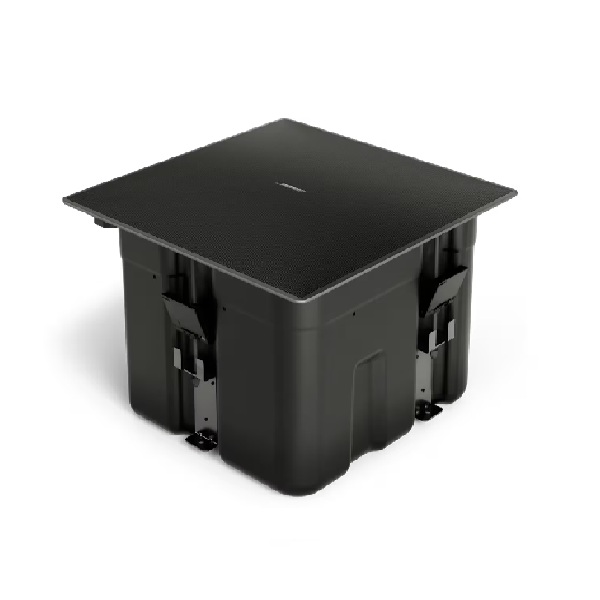

• Grille Microperforated steel, powder-coated finish, paintable
• Ceiling Cutout 13.6 in × 13.6 in × 9.3 in (345 mm × 345 mm × 236 mm), length × width × mounting depth
• Suspension/Mounting (4) (4) QuickHold spring-loaded mounting arms, (4) M6 safety cable attachment points
• Product Dimensions (H×W×D) 13.4 in × 13.4 in × 9.8 in (339 mm × 339 mm × 249 mm), backcan / 15.4 in × 15.4 in × 0.5 in (390 mm × 390 mm × 13 mm), grille flange
• Net Weight 22.2 lb (10.1 kg), loudspeaker with grille (single)
• Shipping Weight 29.0 lb (12.5 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 45 Hz – 20,000 Hz
• Coverage, Horizontal 180°
• Calculated Maximum SPL @ 1 m 114 dB continuous, 120 dB peak
• Nominal Impedance 8 Ω (transformer bypassed)
• Power Handling, long-term continuous 125 W
• Power Handling, Peak 500 W
• Recommended Signal Processing Recommended but not required
• Sensitivity (SPL/1 W at 1 m) 93 dB
• Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass
• Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
• Coverage, Vertical 75°

TRANSDUCERS:

• Crossover 1 kHz, passive 2-way crossover with integrated 70/100V transformer
• Driver Protection Recommended high-pass protection 55 Hz with minimum 12-dB/octave filter

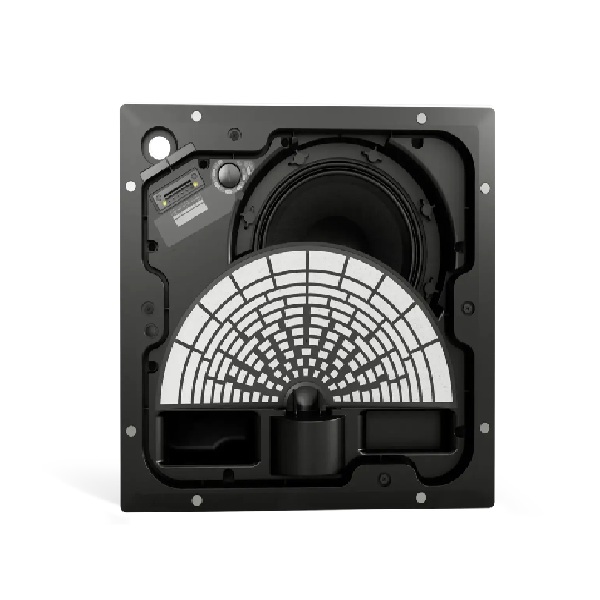

• High-Frequency 1 × compression driver, 1.3 in (33 mm) voice coil
• Low-Frequency 1 × 8 in (203 mm) woofer, 1.5 in (38 mm) voice coil
