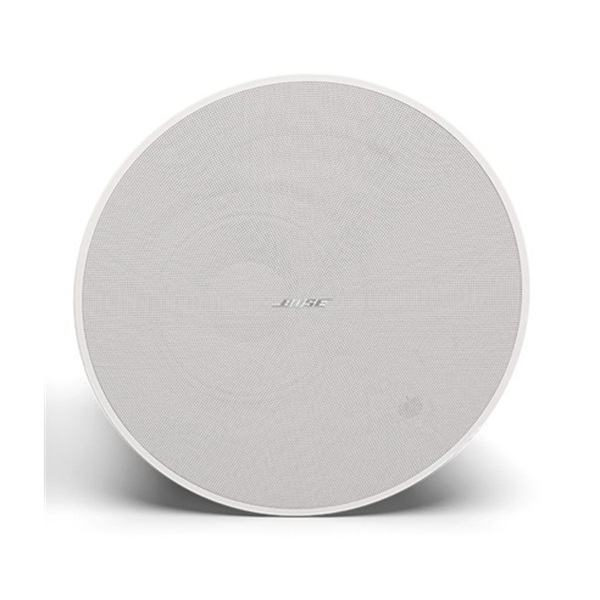

Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL:

• Colors Black (RAL 9005), white (RAL 9003), paintable
• Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
• Environmental Indoor only
• Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
• Ceiling Cutout 13.8 in (349 mm)
• Logo Rotatable, removable
• Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
• Net Weight 21.9 lb (9.9 kg), loudspeaker with grille (single) / 2.2 lb (1.0 kg), tile bridge (single)
• Shipping Weight 28.5 lb (12.9 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 38 Hz – 115 Hz
• Coverage, Horizontal Omnidirectional below 200 Hz
• Calculated Maximum SPL @ 1 m 112 dB
• Nominal Impedance 8 Ω (transformer bypass)
• Power Handling, long-term continuous 180 W
• Power Handling, Peak 720 W
• Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m) 89 dB
• Transformer Taps, 100V 40, 80, 150 W, bypass
• Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass
• Coverage, Vertical Omnidirectional below 200 Hz

TRANSDUCERS:

• Crossover 80 Hz – 200 Hz via active crossover in DSP
• Driver Protection Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
• Low-Frequency 1 × 8 in (203 mm) woofer
