Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL:

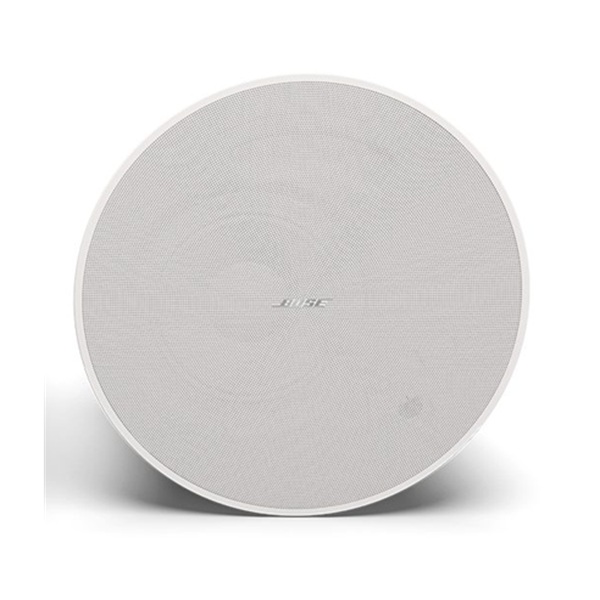

• Colors Black (RAL 9005), white (RAL 9003), paintable

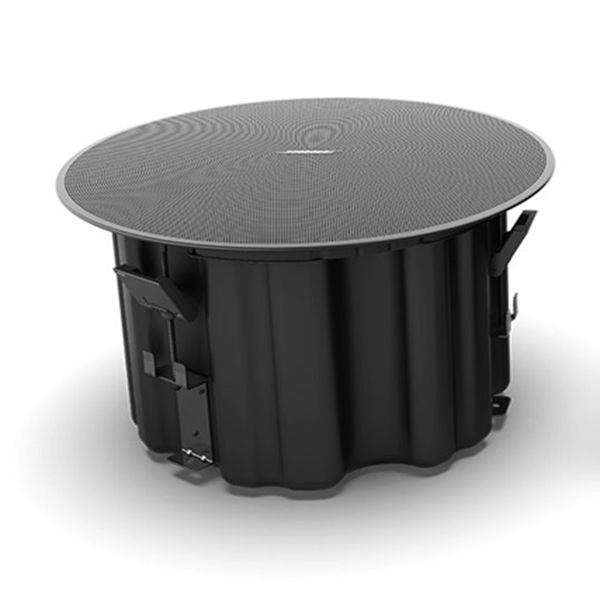

• Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
• Environmental Indoor only
• Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
• Ceiling Cutout 13.8 in (349 mm)
• Logo Rotatable, removable
• Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
• Net Weight 21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge
• Shipping Weight 28.0 lb (12.7 kg), single

PERFORMANCE:

• Frequency Range (-10 dB) 52 Hz – 20,000 Hz
• Coverage, Horizontal 135° conical
• Calculated Maximum SPL @ 1 m 113 dB
• Nominal Impedance 8 Ω (transformer bypass)
• Power Handling, long-term continuous 150 W
• Power Handling, Peak 600 W
• Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m) 91 dB
• Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass
• Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
• Coverage, Vertical 135° conical

TRANSDUCERS:

• Crossover 1.5 kHz, passive 2-way crossover
• Driver Protection Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
• High-Frequency 1 × 1 in (25 mm) compression driver, coaxial center-firing
• Low-Frequency 1 × 8 in (203 mm) woofer
