Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant

PHYSICAL:

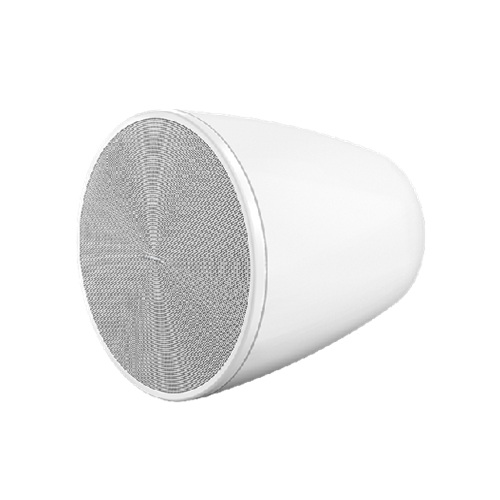

• Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable
• Enclosure Material Engineered plastics
• Environmental Indoor only
• Grille Perforated steel, powder-coated finish
• Logo Rotatable, removable

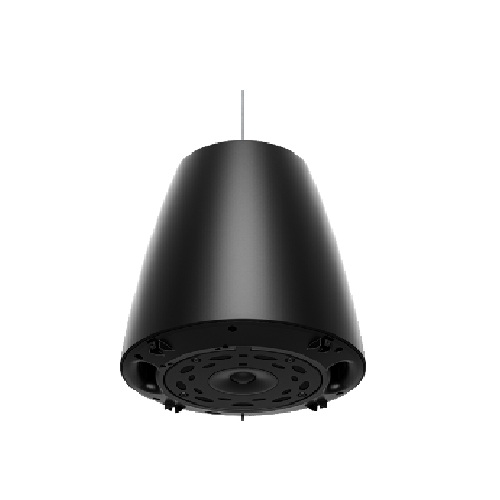

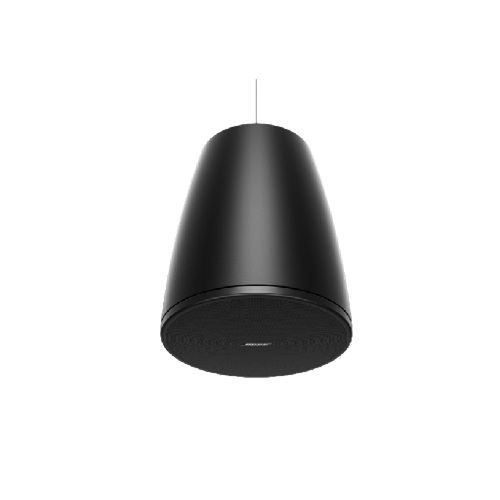

• Suspension/Mounting 1 suspension attachment point, 1 safety cable attachment point
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
• Net Weight 9.1 lb (4.1 kg), single
• Shipping Weight 24.3 lb (11.0 kg), pair

PERFORMANCE:

• Frequency Range (-10 dB) 65 Hz – 20,000 Hz
• Coverage, Horizontal 120° conical
• Calculated Maximum SPL @ 1 m 105 dB
• Nominal Impedance 8 Ω (transformer bypass)
• Power Handling, long-term continuous 50 W
• Power Handling, Peak 200 W
• Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m) 87 dB
• Transformer Taps, 100V 6, 12, 25, 50 W, bypass
• Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, 50 W, bypass
• Coverage, Vertical 120° conical

TRANSDUCERS:

• Crossover 1.8 kHz, passive 2-way crossover
• Driver Protection Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
• High-Frequency 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
• Low-Frequency 1 × 5.25 in (133 mm) woofer
