Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL:

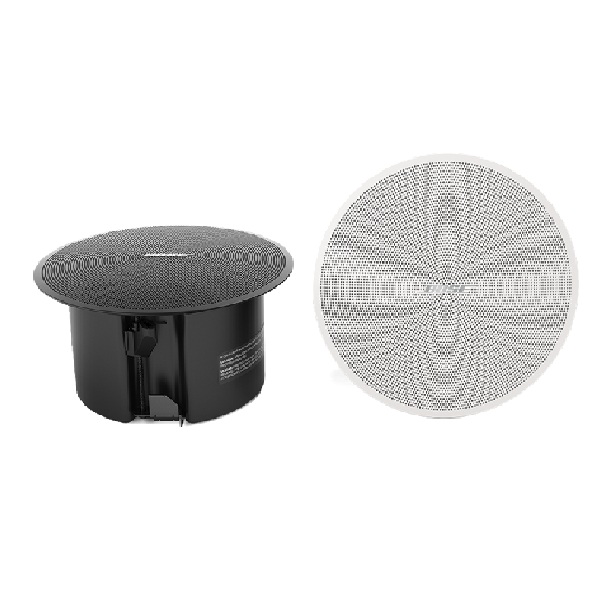

• Colors Black (RAL 9005), white (RAL 9003), paintable

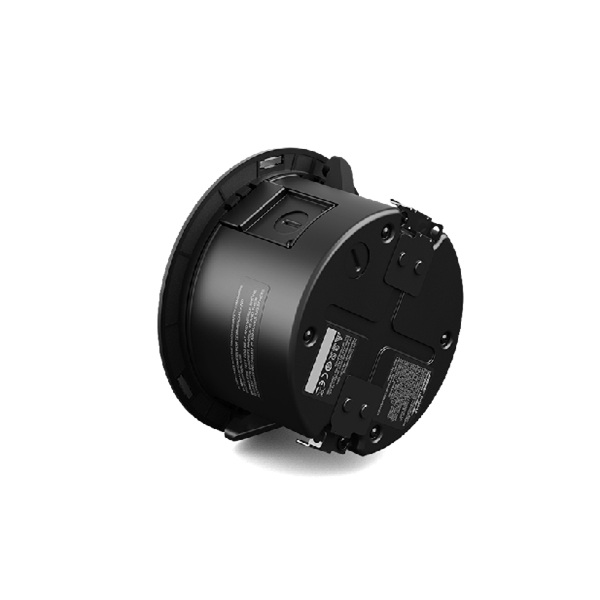

• Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
• Environmental Indoor only

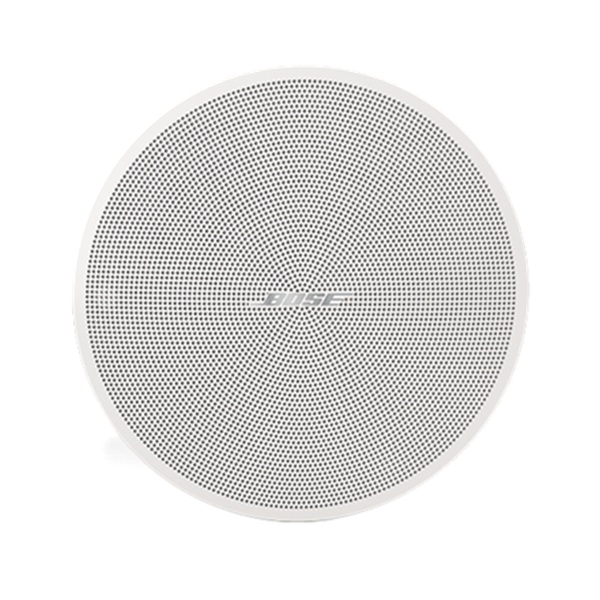

• Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
• Ceiling Cutout 6.5 in (165 mm)
• Logo Rotatable, removable
• Suspension/Mounting (2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 7.8 in × 4.3 in (198 mm × 110 mm), loudspeaker diameter × depth / 6.1 in × 3.9 in (155 mm × 99 mm), backcan diameter × depth
• Net Weight 3.6 lb (1.6 kg), loudspeaker with grille (single) / 0.7 kg (1.6 lb), tile bridge (single)
• Shipping Weight 13.2 lb (5.9 kg), pair

PERFORMANCE:

• Frequency Range 85 Hz – 19,000 Hz
• Coverage, Horizontal 150° conical
• Calculated Maximum SPL @ 1 m 97 dB
• Nominal Impedance 16 Ω (transformer bypass)
• Power Handling, long-term continuous 20 W
• Power Handling, Peak 80 W
• Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m) 84 dB
• Transformer Taps, 100V 2.3, 4.5, 9 W, bypass
• Transformer Taps, 70V 1.2W, 2.3 W, 4.5 W, 9 W, bypass

TRANSDUCERS:

• Driver Protection Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter
• Low-Frequency 1 × 2.25 in (57 mm) woofer
