Product Description

Technical Specification:

COMPLIANCE:

• Safety Agency Ratings UL-1480A, S5591/ UL Listed, NFPA70, CE compliant

PHYSICAL:

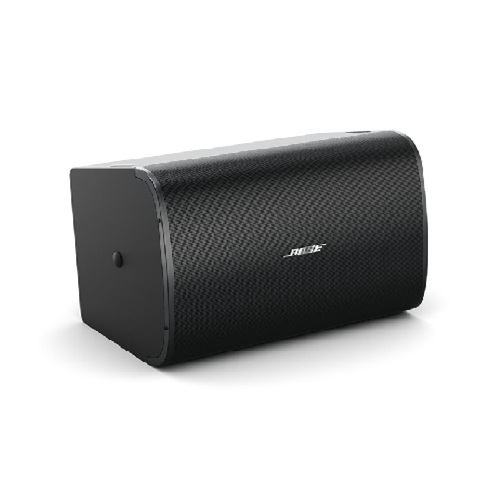

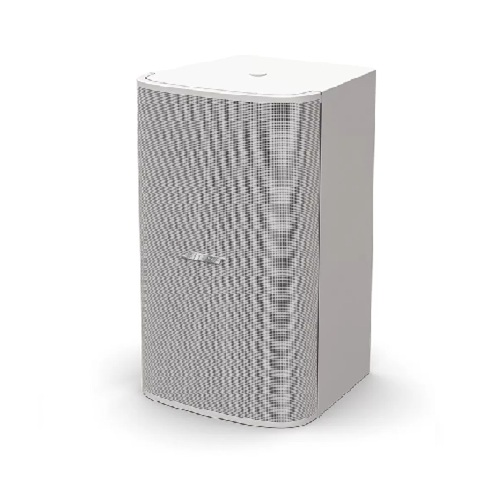

• Colors Black (RAL 9005), white (similar to RAL 9003), paintable
• Enclosure Material High-density wood composite with solid color laminate, UV fade-resistant
• Environmental Indoor only
• Grille Perforated steel, powder-coated finish, paintable, tamper-resistant design
• Logo Rotatable, removable
• Suspension/Mounting QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
• Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H×W×D) 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket
• Net Weight 35.5 lb (16.1 kg), loudspeaker with grille & bracket
• Shipping Weight 41.5 lb (18.8 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 35 Hz – 125 Hz
• Coverage, Horizontal Omnidirectional below 200 Hz
• Calculated Maximum SPL @ 1 m 115 dB
• Nominal Impedance 8 Ω (transformer bypass)
• Power Handling, long-term continuous 300 W
• Power Handling, Peak 1200 W
• Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m) 90 dB
• Transformer Taps, 100V 40, 80, 150 W, bypass
• Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass
• Coverage, Vertical Omnidirectional below 200 Hz

TRANSDUCERS:

• Crossover 80 Hz – 200 Hz via active crossover in DSP
• Driver Protection Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
• Low-Frequency 1 × 10 in (254 mm) woofer
