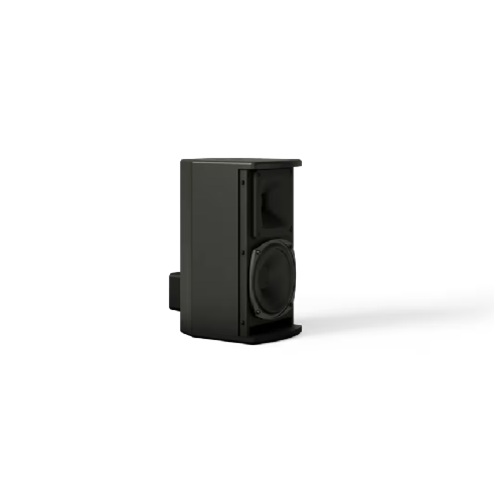

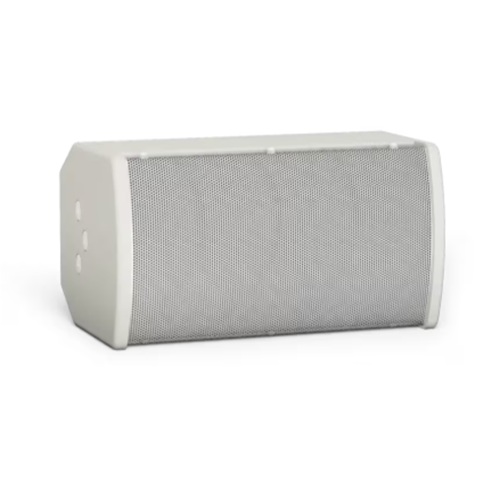

Product Description

Technical Specification:

COMPLIANCE:

• EN 54-24 Certified Yes
• Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

PHYSICAL:

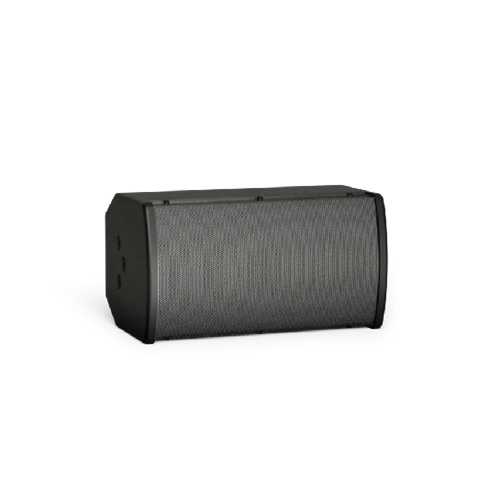

• Colors Black
• Enclosure Material Exterior-grade plywood
• Environmental Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
• Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
• Ingress Protection IP55 per EN60529; IP33C per EN 54-24
• Suspension/Mounting 2 × M8 threaded inserts for U-bracket, 2 × M8 threaded inserts on rear (75 mm, 2-bolt pattern)
• Product Dimensions (H×W×D) 6.0 in × 12.0 in × 9.0 in (152 mm × 304 mm × 229 mm), loudspeaker with input cover
• Net Weight 14.4 lb (6.5 kg), loudspeaker / 16.5 lb (7.5 kg), loudspeaker with U-bracket
• Shipping Weight 21.0 lb (9.5 kg)

PERFORMANCE:

• Frequency Range (-10 dB) 90 Hz – 18,000 Hz
• Coverage, Horizontal 100°
• Calculated Maximum SPL @ 1 m 116 dB (free field), 118 dB (wall/ceiling)
• Nominal Impedance 8 Ω
• Power Handling, long-term continuous 100 W
• Power Handling, Peak 400 W
• Sensitivity (SPL/1 W at 1 m) 90 dB (free field), 92 dB (wall/celling)
• Transformer Taps, 100V 10, 20, 40, 80 W
• Transformer Taps, 70V 5 W, 10 W, 20 W, 40 W, 80 W
• Coverage, Vertical 100°

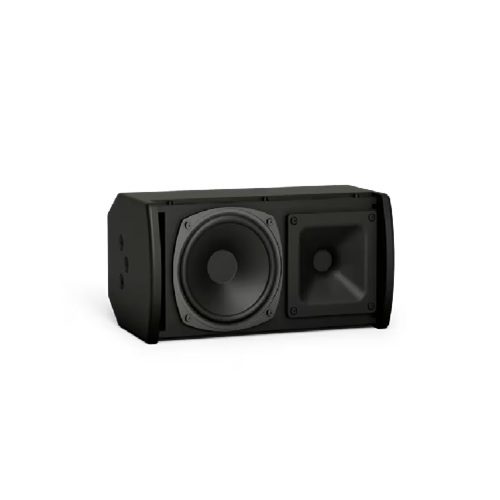

TRANSDUCERS:

• Crossover 2.0 kHz, passive
• High-Frequency 1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
• Low-Frequency 1 × Bose Professional LF5 high-excursion 5.25 in (133 mm) woofer, 1.5 in (38 mm) voice coil
