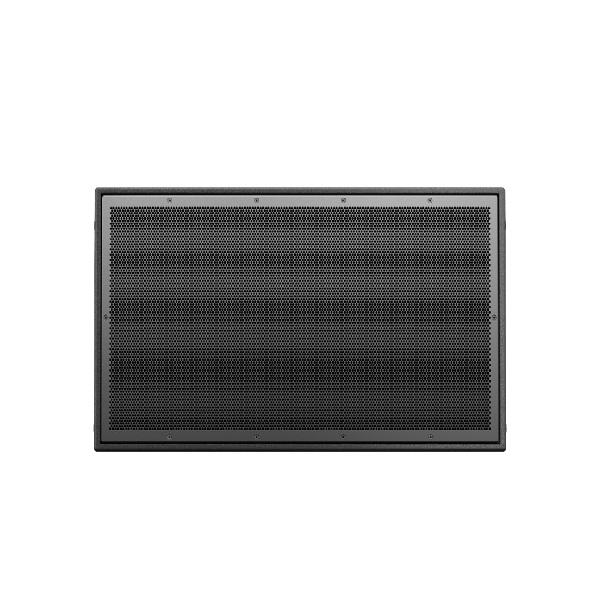

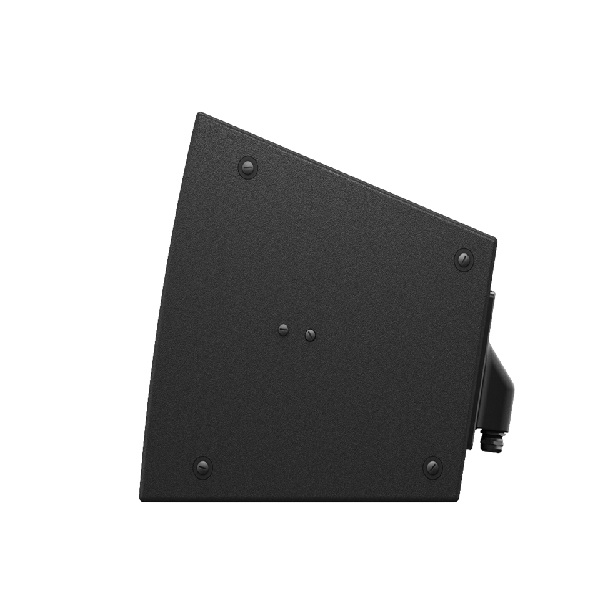

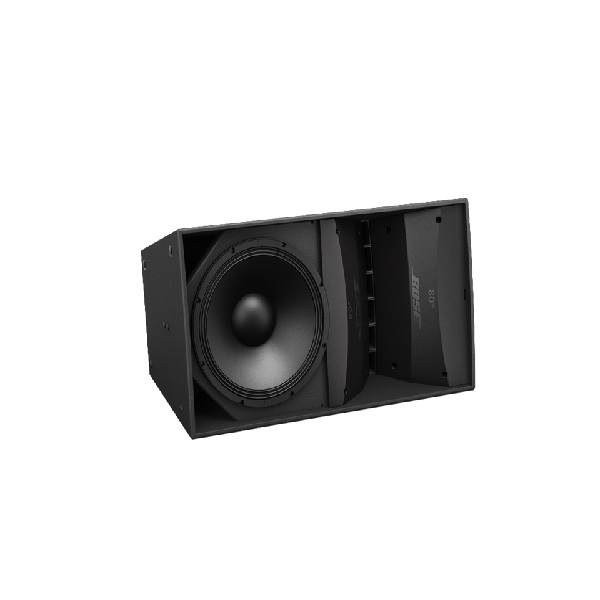

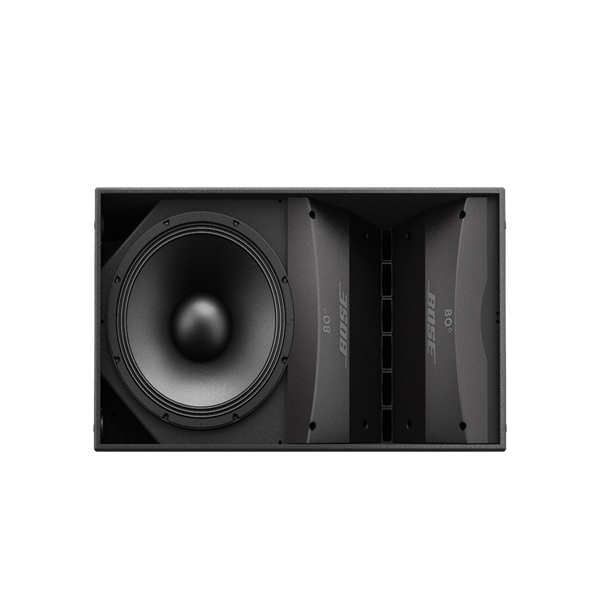

Bose ArenaMatch AM20 DeltaQ Array Loudspeaker
- EN 54-24 Certified Yes
- Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Colors Black
- Enclosure Material Exterior-grade birch plywood
- Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
- Ingress Protection IP55 per EN60529; IP33C per EN 54-24
Product Description
Technical Specification:
COMPLIANCE:
- EN 54-24 Certified Yes
- Safety Agency Ratings EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
PHYSICAL:
- Colors Black
- Enclosure Material Exterior-grade birch plywood
- Grille 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
- Ingress Protection IP55 per EN60529; IP33C per EN 54-24
- Product Dimensions (H×W×D) 17.2 in × 30.8 in × 16.4 in (437 mm× 783 mm × 416 mm)
- Net Weight 80.0 lb (36.2 kg)
- Shipping Weight 95.5 lb (43.3 kg)
PERFORMANCE:
- Frequency Range (-10 dB) 55 Hz – 18,000 Hz
- Coverage, Horizontal 60° (AM20/60), 80° (AM20/80), 100° (AM20/100)
- Calculated Maximum SPL @ 1 m AM20/60: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM20/80: 122 dB (LF) / 127 dB (HF) / 127 dB (passive). AM20/100: 122 dB (LF) / 126 dB (HF) / 126 dB (passive)
- Nominal Impedance Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
- Power Handling, long-term continuous Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W
- Power Handling, Peak Low Frequency: 2400 W peak / High Frequency: 600 W peak / Passive: 3000 W peak
- Recommended Power Amplification Bi-amp, LF, 600 W – 1200 W / Bi-amp, HF,150 W – 300 W / Low-Z Passive, 750 W – 1500 W
- Recommended Signal Processing Presets in ControlSpace Designer software
- Sensitivity (SPL/1 W at 1 m) AM20/60: 94 dB (LF), 106 dB (HF), 99 dB (passive) / AM20/80: 94 dB (LF), 105 dB (HF), 98 dB (passive) / AM20/100: 94 dB (LF), 104 dB (HF), 97 dB (passive)
- Transformer Taps, 100V 200 W, 400 W
- Transformer Taps, 70V 100 W, 200 W, 400 W
- Coverage, Vertical 20°
TRANSDUCERS:
- Crossover 950 Hz, internal passive or external bi-amp (Bose Professional ControlSpace presets)
- High-Frequency 6 × Bose Professional EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil
- Low-Frequency 1 × Bose Professional LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
- Warranty Period 5 years / 2 years
