Product Description

Overview:

• AI-accelerated hybrid compute with Intel® Core™ Ultra X9, Arc™ B390 GPU and NPU 5, delivering up to 180 TOPS for real-time Edge AI.
• Intel® Core™ Ultra X7 and X9 units support up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance. Intel® Core™ Ultra 5 and 7 units support up to 128GB CSO-DIMM DDR5.

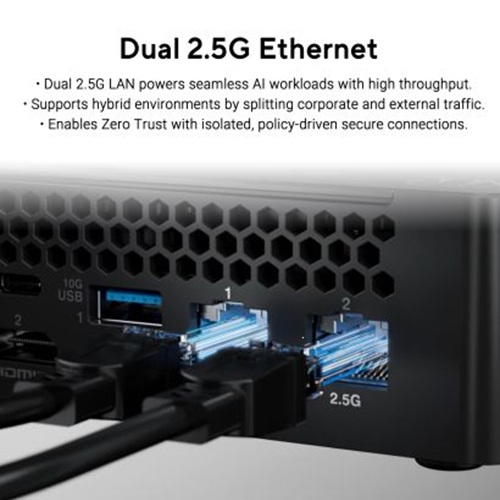

• Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI.
• Intel vPro® (select SKUs), fTPM, and ASUS management tools enable hardware-level security, remote monitoring, and fleet control.

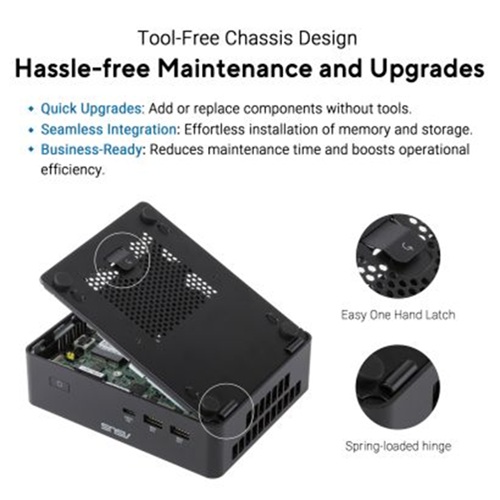

• Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance.

Specifications:

• Form Factor: Kit
• Operating System: No preinstalled OSSupport: Windows 11 Home 64-bit Windows 11 Pro 64-bit Windows 11 IoT Enterprise 64-bit Windows 11 Pro Education 64-bit Ubuntu 24.04 LTS 64-bit RedHat Enterprise Linux 10.0 64-bit
• CPU: Intel® Core™ Ultra 5 325, cTDP 45W
• Chipset: Integrated
• Graphics: Intel® Graphics
• Memory: No memory included at shipment Max Capacity: 128GB (64GB DDR5-6400 CSO-DIMM x 2)
• Storage: No storage included at shipment Support: 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0×4 SSD or 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0×4 SSD
• Wireless Data Network: Intel® Wi-Fi 7 BE211 (Gig+), Bluetooth 6.0
• LAN: Dual Intel® Ethernet Controller I226-V, 2.5G
• Audio: No Analog Audio Support – Digital Audio

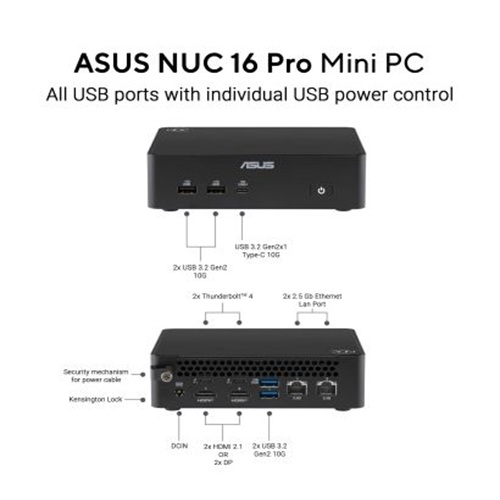

• Front(Side) I/O Ports: 1 x USB 3.2 Gen2x1 Type-C 2 x USB 3.2 Gen2 Type-A 1 x Kensington Lock (Side)

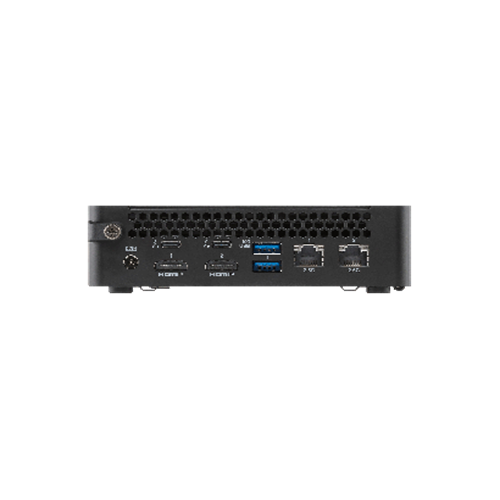

• Back I/O Ports: 2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1 2 x USB 3.2 Gen 2 Type-A 2 x HDMI 2.1 (TMDS Compatible) 2 x RJ45 LAN 1 x DC-in
•  Power Supply: 19VDC, 6.32A, 120W Power Adapter

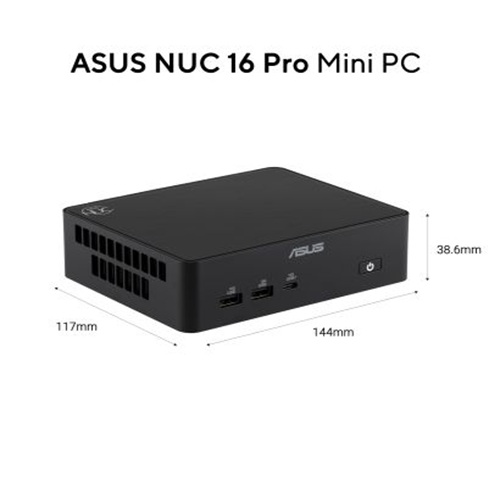

•  Dimensions (W x D x H): 144mm x 117mm x 42mm
•  Weight: 730g
• ID: Black, With ASUS LOGO
•  Accessories: AC Adapter+Power Cord VESA Bracket and Screws Cable Clip Safety/Caution/Regulatory Insert Warranty Card *Power cord included is region specific, and some SKUs do not include the power cord

Tecnical Specifications:

• Sku    RNUC16GDKU560000
• Operating System    OS Not Included’ Support: WIN 11 Home 64-bit WIN 11 Pro 64-bit WIN 11 IoT Enterprise 64 bit WIN 11 Pro Education 64-bit Ubuntu 24.04 LTS 64-bit RedHat Enterprise Linux 10.0 64-bit
• Brand    ASUS
• Colour    Black
• Processor    Intel® Core™ Ultra 5 Processor 325 2.1 GHz (12MB Cache, up to 4.5 GHz, 8 Cores, 8 Threads); Intel® AI Boost NPU up to 47 TOPS
• Graphics    Intel® Graphics
• Memory    RAM Not Included’ Support: 2 x CSO-DIMM Slots, Up to DDR5-6400, 64GBx 2
• Storage    Storage Not Included’ 1x M.2 2280 PCIe x4 Gen5, supports 128GB~8TB NVMe SSDs 1x M.2 2280 PCIe x4 Gen4, supports 128GB~8TB NVMe SSDs
• USB Port(s)    1 x USB 3.2 Gen2x1 Type-C 2 x USB 3.2 Gen2 Type-A 2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1 2 x USB 3.2 Gen2 Type-A
• HDMI Port(s)    2x HDMI
• LAN    Yes
• Bluetooth    Bluetooth 6.0
• Weight    1.60
• Dimensions    117mm x 42mm x 144mm
• What’s in the Box?    AC Adapter Only* VESA Bracket and Screws Cable Clip Warranty Card *Power Cord to be purchased separately
• Warranty    3 Years Onsite (Barebone)
