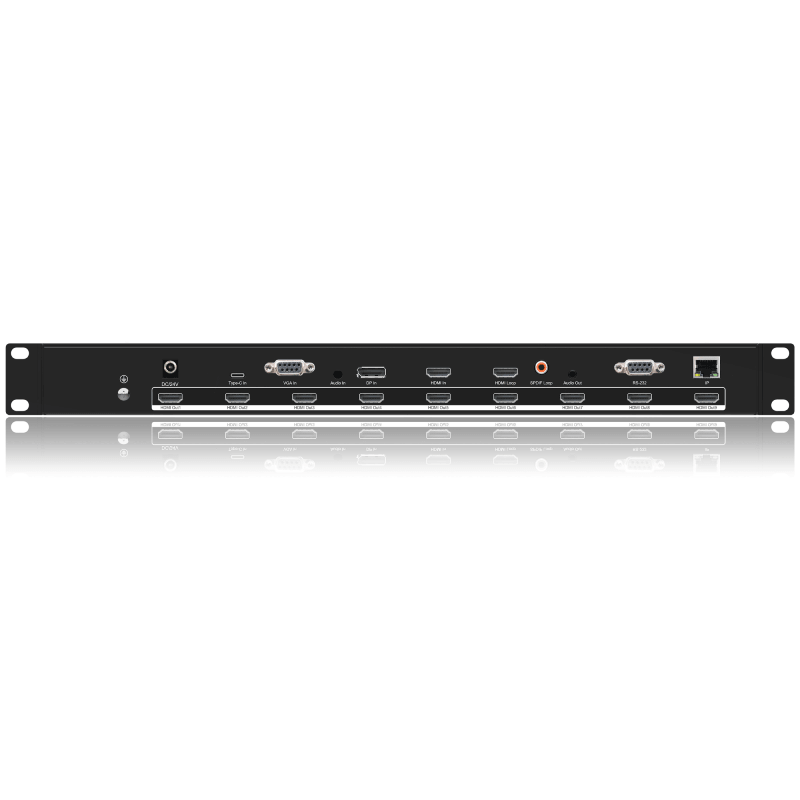

3×3 HDMI Videowall Controller UCS-VW03
4K videowall controller which create a 3×3 videwall from one of four sources: Type-C, VGA, DP & HDMI. Cascading up to max 10×10 videowall. It support resolution up to 4K@30HZ and Audio extraction.
Contact NowProduct Description
Key Features
- 1x Type-c/VGA/DP/HDMI input to split 9x HDMI Outputs
- Support resolution up to 4K30HZ 4:4:4 with 2 default EDID options: 4K &1080p
- Support 4K 3×3 video wall, cascading to create 3×4,4×5, 5X6,and max 10×10 video wall
- Support HDCP2.2/1.4 compliant
- Support panel button; IR remote; RS232 command and Web GUI to control
- Support SPDIF and Analog audio extraction
- Support third-party platform control via RS232 port or Lan
Specification
- Video Input Connectors: 1 x HDMI; 1x Type-C; 1x DP; 1x VGA
- Video Output Connectors: 10 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1x SPDIF; 1x analogue 3.5 mm stereo jack
- RS-232 serial port: 1 x DB-9 female
- TCP/IP Control: 1 x RJ45, female
- Dimensions: 438x 274x 44 mm
